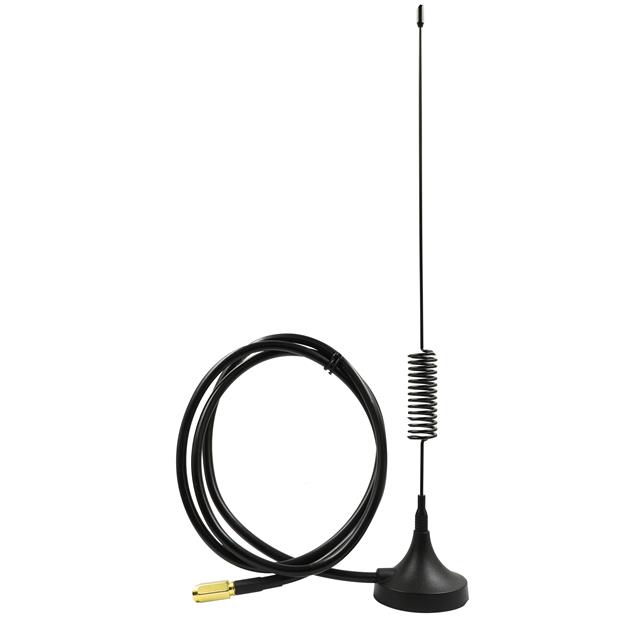

YXH001AA

YXH001AA

Part Number	YXH001AA
Manufacturer	Quectel
Other Part Numbers	2958-YXH001AA-ND 2958-YXH001AA
Description	ANTENNA,700-5000MHZ,1M,SMA(M)
Detailed Description	829MHz, 830MHz, 1.228GHz, 1.505GHz, 1.94GHz, 2.2GHz, 2.43GHz, 3.65GHz, 4.15GHz, 4.5GHz, 5.5GHz 5G Whip, Straight RF Antenna 698MHz ~ 960MHz, 700MHz ~ 960MHz, 1.176GHz ~ 1.28GHz, 1.4GHz ~ 1.61GHz, 1.71GHz ~ 2.17GHz, 1.71GHz ~ 2.69GHz, 2.17GHz ~ 2.69GHz, 3.3GHz ~ 4GHz, 3.3GHz ~ 5GHz, 4GHz ~ 5GHz, 5GHz ~ 6GHz 3.3dBi, 4.5dBi, 4.5dBi, 4.5dBi, 4.5dBi, 3.3dBi, 4.5dBi, 3.1dBi SMA Male Magnetic
Manufacturer Standard Lead Time	6 weeks

Product Attributes

Category		RF and Wireless RF Antennas
Manufacturer		Quectel
Series
Packaging		Bag
Part Status		Active
Features		Cable - 1m
Mounting Type		Magnetic
Frequency Range		698MHz ~ 960MHz, 700MHz ~ 960MHz, 1.176GHz ~ 1.28GHz, 1.4GHz ~ 1.61GHz, 1.71GHz ~ 2.17GHz, 1.71GHz ~ 2.69GHz, 2.17GHz ~ 2.69GHz, 3.3GHz ~ 4GHz, 3.3GHz ~ 5GHz, 4GHz ~ 5GHz, 5GHz ~ 6GHz
Applications		5G
Gain		3.3dBi, 4.5dBi, 4.5dBi, 4.5dBi, 4.5dBi, 3.3dBi, 4.5dBi, 3.1dBi
Termination		SMA Male
Ingress Protection		IP65
Number of Bands		11
VSWR		4
Antenna Type		Whip, Straight
Height (Max)		1.772" (45.00mm)
Frequency Group		Wide Band
Frequency (Center/Band)		829MHz, 830MHz, 1.228GHz, 1.505GHz, 1.94GHz, 2.2GHz, 2.43GHz, 3.65GHz, 4.15GHz, 4.5GHz, 5.5GHz
RF Family/Standard		Cellular

Documents & Media

RESOURCE TYPE		LINK

Environmental & Export Classifications

ATTRIBUTE		DESCRIPTION
ECCN		EAR99
HTSUS		8517.71.0000
Moisture Sensitivity Level (MSL)		1 (Unlimited)
RoHS Status		ROHS3 Compliant

In Stock: 120

Can ship immediately.
