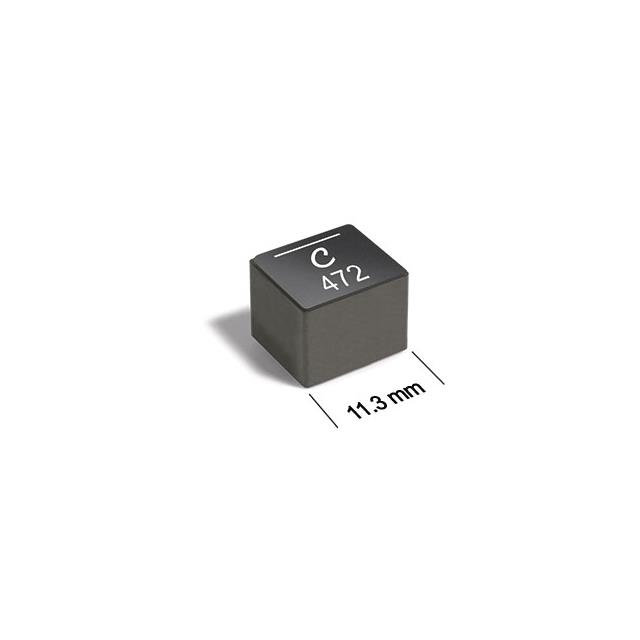

XGL1010-682MED

Part Number
XGL1010-682MED
Manufacturer COILCRAFT
Other Part Numbers
2457-XGL1010-682MED-ND
2457-XGL1010-682MED
Description FIXED IND 6.8UH 21.2A 7MOHM SM
Detailed Description 6.8 µH Shielded Molded Inductor 21.2 A 7mOhm Max Nonstandard
Datasheet Datasheet

Product Attributes

Category
Manufacturer COILCRAFT
Series
XGL1010
Packaging
Tape & Reel (TR)
Part Status Active
Tolerance ±20%
Package / Case Nonstandard
Size / Dimension 0.445" L x 0.394" W (11.30mm x 10.00mm)
Mounting Type Surface Mount
Shielding Shielded
Type Molded
Operating Temperature -40°C ~ 125°C
DC Resistance (DCR) 7mOhm Max
Frequency - Self Resonant 14MHz
Ratings AEC-Q200
Current - Saturation (Isat) 22A
Material - Core Metal Composite
Inductance Frequency - Test 1 MHz
Height - Seated (Max) 0.394" (10.00mm)
Inductance 6.8 µH
Current Rating (Amps) 21.2 A

Documents & Media

RESOURCE TYPE LINK
Datasheets XGL1010-682MED

Environmental & Export Classifications

ATTRIBUTE DESCRIPTION
ECCN EAR99
HTSUS 8504.50.8000
RoHS Status ROHS3 Compliant
