Part Number	XG4H-1631
Manufacturer	Omron Electronic Components
Other Part Numbers	Z6491-ND XG4H-1631-ND XG4H1631 Z6491

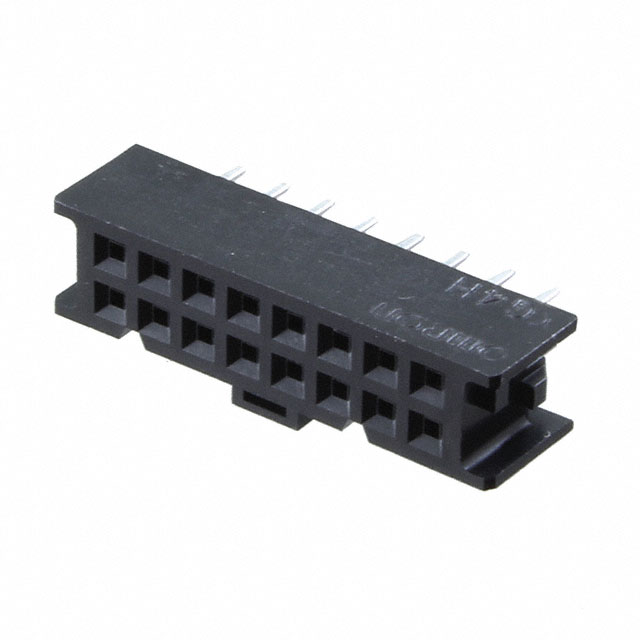

Description	CONN RCPT 16POS 0.1 GOLD PCB
Detailed Description	16 Position Receptacle Connector 0.100" (2.54mm) Through Hole Gold
Manufacturer Standard Lead Time	14 weeks
Datasheet	Datasheet

Category		Connectors, Interconnects Rectangular Connectors Headers, Receptacles, Female Sockets
Manufacturer		Omron Electronic Components
Series		XG4
Packaging		Bulk
Part Status		Active
Features		Polarizing Key
Connector Type		Receptacle
Voltage Rating		300VAC
Current Rating (Amps)		3A
Mounting Type		Through Hole
Number of Positions		16
Style		Board to Board
Operating Temperature		-55°C ~ 105°C
Contact Type		Female Socket
Fastening Type		Latch Holder
Number of Positions Loaded		All
Termination		Solder
Material Flammability Rating		UL94 V-0
Contact Material		Phosphor Bronze
Mated Stacking Heights		9.7mm, 10.1mm
Insulation Color		Black
Pitch - Mating		0.100" (2.54mm)
Contact Finish - Mating		Gold
Contact Finish Thickness - Mating		5.90µin (0.150µm)
Contact Finish - Post		Tin
Contact Finish Thickness - Post		78.7µin (2.00µm)
Contact Shape		Square
Contact Length - Post		0.122" (3.10mm)
Insulation Height		0.283" (7.19mm)
Insulation Material		Polybutylene Terephthalate (PBT), Glass Filled
Row Spacing - Mating		0.100" (2.54mm)
Number of Rows		2

ATTRIBUTE		DESCRIPTION
ECCN		EAR99
HTSUS		8536.69.4040
Moisture Sensitivity Level (MSL)		1 (Unlimited)
REACH Status		REACH Unaffected
RoHS Status		RoHS Compliant
