Part Number	XG4A-2036
Manufacturer	Omron Electronic Components
Other Part Numbers	XG4A-2036-ND XG4A2036-ND XG4A2036 XG4A2036BYOMZ 2266-XG4A-2036 XG4A-2036 BY OMZ

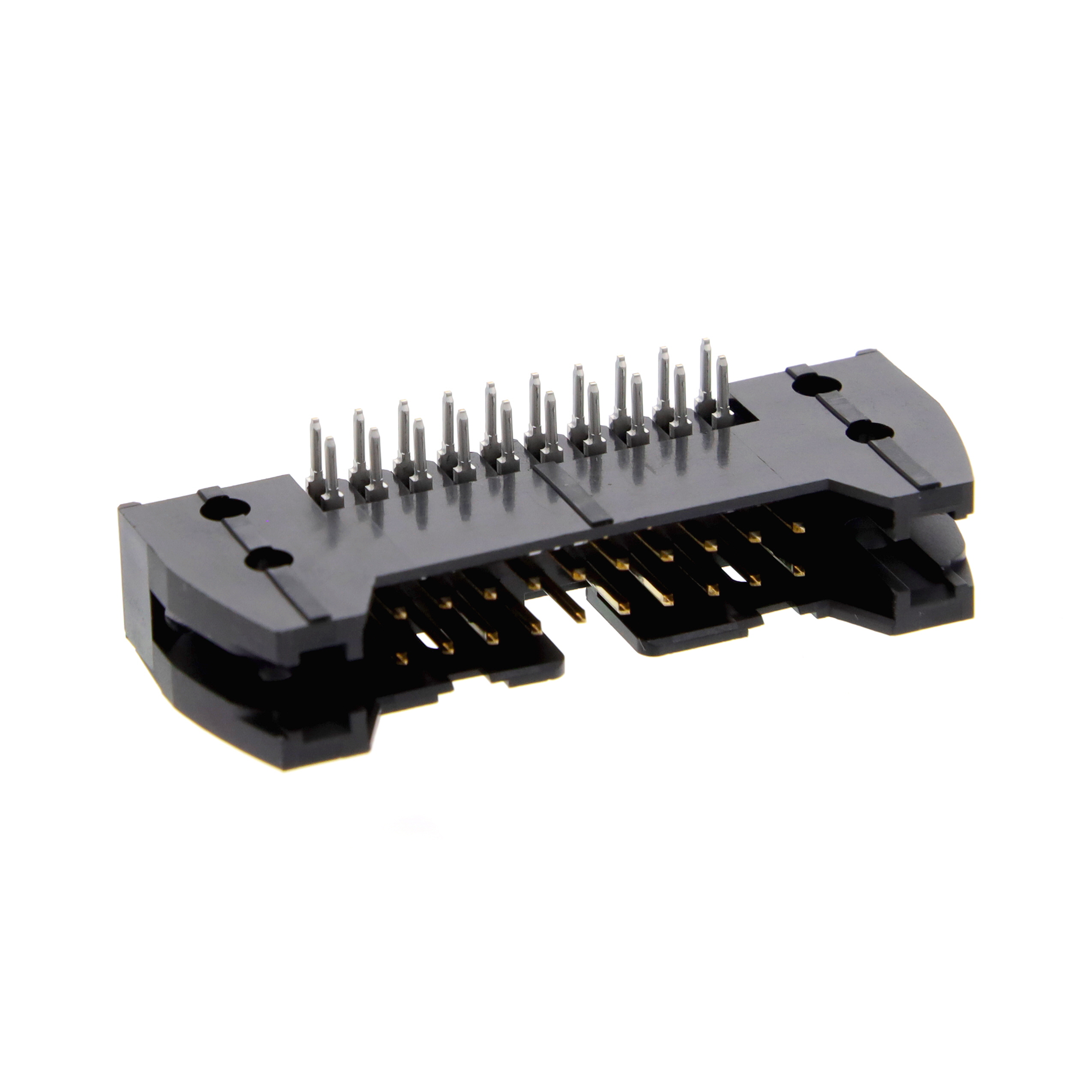

Description	CONN HEADER R/A 20POS 2.54MM
Detailed Description	Connector Header Through Hole, Right Angle 20 position 0.100" (2.54mm)
Manufacturer Standard Lead Time	14 weeks

Category		Connectors, Interconnects Rectangular Connectors Headers, Male Pins
Manufacturer		Omron Electronic Components
Series		XG4
Packaging		Bulk
Part Status		Active
Features		Keying Slot, Mounting Flange
Connector Type		Header
Voltage Rating		300V
Current Rating (Amps)		3A
Mounting Type		Through Hole, Right Angle
Number of Positions		20
Number of Rows		2
Style		Board to Cable/Wire
Operating Temperature		-55°C ~ 105°C
Contact Type		Male Pin
Fastening Type		Push-Pull
Number of Positions Loaded		All
Termination		Solder
Material Flammability Rating		UL94 V-0
Contact Material		Brass, Nickel
Insulation Color		Black
Pitch - Mating		0.100" (2.54mm)
Contact Finish - Mating		Gold
Contact Finish Thickness - Mating		5.90µin (0.150µm)
Contact Finish - Post		Tin
Contact Finish Thickness - Post		78.7µin (2.00µm)
Contact Shape		Square
Contact Length - Post		0.126" (3.20mm)
Insulation Height		0.335" (8.51mm)
Shrouding		Shrouded - 4 Wall
Insulation Material		Polybutylene Terephthalate (PBT), Glass Filled
Row Spacing - Mating		0.100" (2.54mm)
Contact Length - Mating		0.240" (6.10mm)

RESOURCE TYPE		LINK
Datasheets		XG4A-2036
Datasheets		XG4(A,M) Marking/Part Surface Dec/2015
Datasheets		Various XG4 Series Country of Origin Jul/2018

ATTRIBUTE		DESCRIPTION
ECCN		EAR99
HTSUS		8536.69.4040
Moisture Sensitivity Level (MSL)		1 (Unlimited)
RoHS Status		RoHS Compliant
