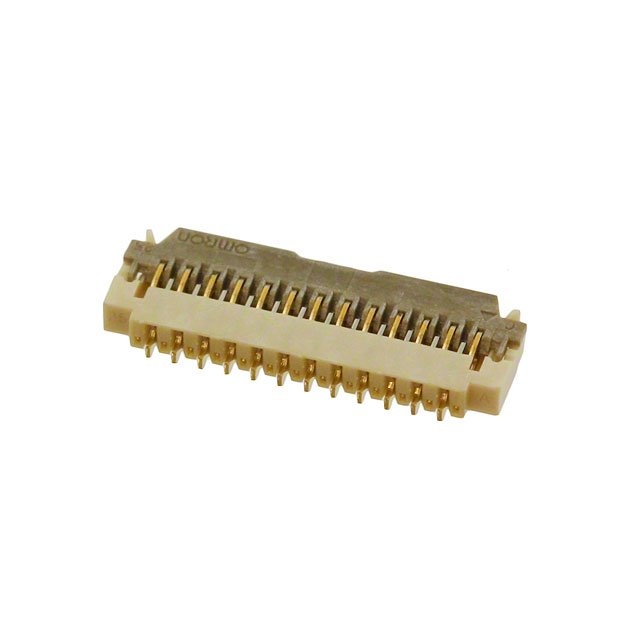

XF3H-2555-31A _ FFC, FPC (Flat Flexible) Connector Assemblies_FFC, FPC (Flat Flexible) Connectors_Connectors, Interconnects

Part Number	XF3H-2555-31A
Manufacturer	Omron Electronic Components
Other Part Numbers	OR1056TR-ND 2266-XF3H-2555-31A OR1056CT OR1056DKR OR1056TR XF3H255531A XF3H-2555-31A-ND
Description	CONN FPC BOTTOM 25POS 0.3MM R/A
Detailed Description	25 Position FPC Connector Contacts, Bottom 0.012" (0.30mm) Surface Mount, Right Angle
Datasheet	Datasheet

Category		Connectors, Interconnects FFC, FPC (Flat Flexible) Connectors FFC, FPC (Flat Flexible) Connector Assemblies
Manufacturer		Omron Electronic Components
Series		XF3H
Packaging		Tape & Reel (TR)
Part Status		Obsolete
Contact Finish		Gold
Voltage Rating		50V
Mounting Type		Surface Mount, Right Angle
Number of Positions		25
Pitch		0.012" (0.30mm)
Operating Temperature		-30°C ~ 85°C
Termination		Solder
Height Above Board		0.035" (0.88mm)
Locking Feature		Rotary Lock
Material Flammability Rating		UL94 V-0
Actuator Material		Liquid Crystal Polymer (LCP), Halogen Free
Contact Material		Copper Alloy
FFC, FCB Thickness		0.20mm
Housing Material		Liquid Crystal Polymer (LCP), Halogen Free
Cable End Type		Tapered
Flat Flex Type		FPC
Connector/Contact Type		Contacts, Bottom

RESOURCE TYPE		LINK
Datasheets		How to Read Date Codes

ATTRIBUTE		DESCRIPTION
ECCN		EAR99
HTSUS		8536.69.4051
Moisture Sensitivity Level (MSL)		1 (Unlimited)
REACH Status		Vendor Undefined

This product is no longer manufactured.
