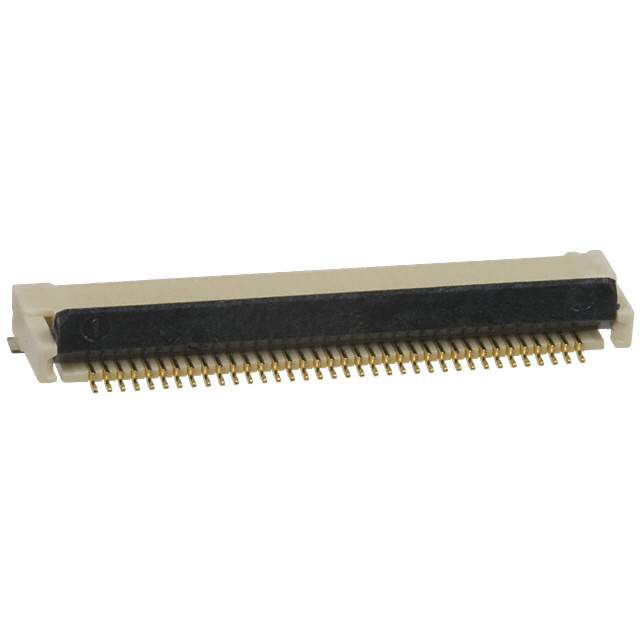

XF2M-3615-1A-R100 _ FFC, FPC (Flat Flexible) Connector Assemblies_FFC, FPC (Flat Flexible) Connectors_Connectors, Interconnects

Part Number	XF2M-3615-1A-R100
Manufacturer	Omron Electronic Components
Other Part Numbers	XF2M-3615-1A-R100-ND XF2M36151AR100 XF2M-3615-1A-R100 BYOMZ XF2M36151AR100BYOMZ XF2M-3615-1A-R100 BY OMZ
Description	CONN FPC 36POS 0.5MM R/A
Detailed Description	36 Position FPC Connector Contacts, Top and Bottom 0.020" (0.50mm) Surface Mount, Right Angle
Manufacturer Standard Lead Time	14 weeks
Datasheet	Datasheet

Category		Connectors, Interconnects FFC, FPC (Flat Flexible) Connectors FFC, FPC (Flat Flexible) Connector Assemblies
Manufacturer		Omron Electronic Components
Series		XF2M
Packaging		Tape & Reel (TR)
Part Status		Active
Contact Finish		Gold
Voltage Rating		50V
Current Rating (Amps)		0.5A
Mounting Type		Surface Mount, Right Angle
Number of Positions		36
Pitch		0.020" (0.50mm)
Operating Temperature		-30°C ~ 85°C
Termination		Solder
Height Above Board		0.083" (2.10mm)
Contact Finish Thickness		5.90µin (0.150µm)
Locking Feature		Rotary Lock, Backlock
Material Flammability Rating		UL94 V-0
Actuator Material		Liquid Crystal Polymer (LCP), Halogen Free
Contact Material		Copper Alloy
FFC, FCB Thickness		0.30mm
Housing Material		Liquid Crystal Polymer (LCP), Halogen Free
Cable End Type		Tapered
Housing Color		Natural
Actuator Color		Black
Mating Cycles		20
Flat Flex Type		FPC
Connector/Contact Type		Contacts, Top and Bottom

ATTRIBUTE		DESCRIPTION
ECCN		EAR99
HTSUS		8536.69.4051
Moisture Sensitivity Level (MSL)		1 (Unlimited)
RoHS Status		RoHS Compliant
