Part Number	XF2L-2125-1A
Manufacturer	Omron Electronic Components
Other Part Numbers	OR762TR-ND OR762CT-ND XF2L-2125-1A BY OMZ OR762TR XF2L21251ABYOMZ 2266-XF2L-2125-1A OR762CT OR762DKR XF2L21251A

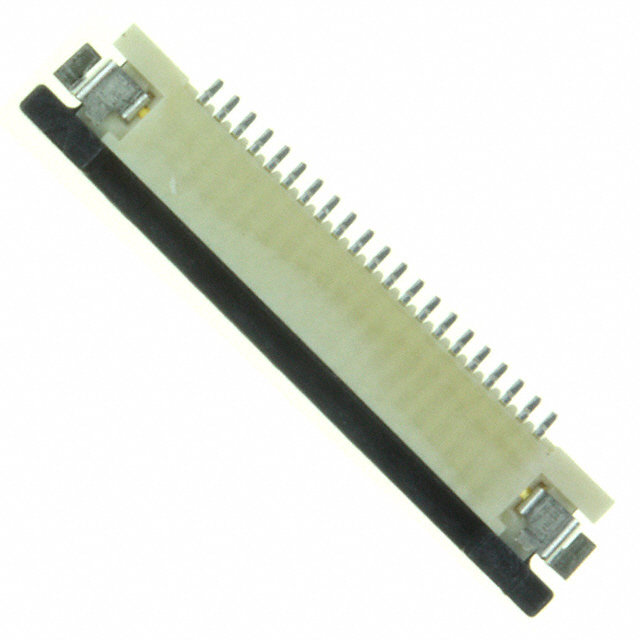

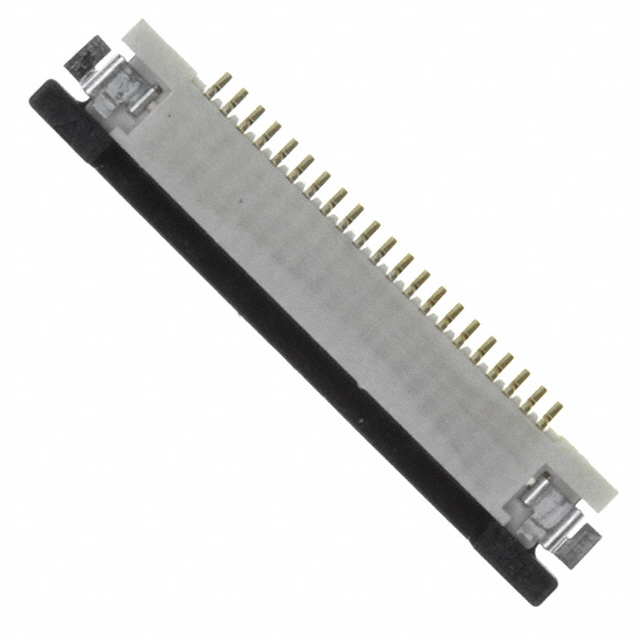

Description	CONN FPC TOP 21POS 0.5MM R/A
Detailed Description	21 Position FPC Connector Contacts, Top 0.020" (0.50mm) Surface Mount, Right Angle
Datasheet	Datasheet

Category		Connectors, Interconnects FFC, FPC (Flat Flexible) Connectors FFC, FPC (Flat Flexible) Connector Assemblies
Manufacturer		Omron Electronic Components
Series		XF2L
Packaging		Tape & Reel (TR) Cut Tape (CT)
Part Status		Obsolete
Features		Zero Insertion Force (ZIF)
Contact Finish		Gold
Voltage Rating		50V
Current Rating (Amps)		0.5A
Mounting Type		Surface Mount, Right Angle
Number of Positions		21
Pitch		0.020" (0.50mm)
Operating Temperature		-30°C ~ 85°C
Termination		Solder
Height Above Board		0.047" (1.20mm)
Contact Finish Thickness		5.90µin (0.150µm)
Locking Feature		Slide Lock
Material Flammability Rating		UL94 V-0
Actuator Material		Liquid Crystal Polymer (LCP), Halogen Free
Contact Material		Copper Alloy
FFC, FCB Thickness		0.30mm
Housing Material		Liquid Crystal Polymer (LCP), Halogen Free
Cable End Type		Straight
Housing Color		Natural
Actuator Color		Black
Mating Cycles		20
Flat Flex Type		FPC
Connector/Contact Type		Contacts, Top

ATTRIBUTE		DESCRIPTION
ECCN		EAR99
HTSUS		8536.69.4051
Moisture Sensitivity Level (MSL)		Not Applicable

This product is no longer manufactured.
