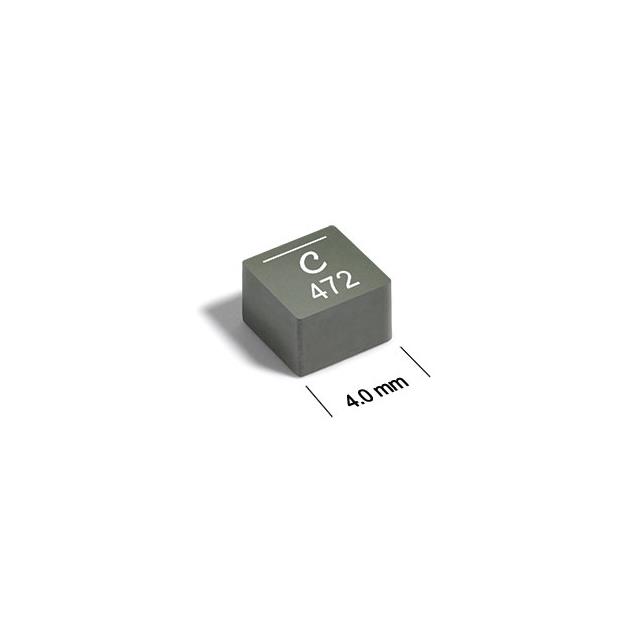

XEL4030-201MEC

Part Number
XEL4030-201MEC
Manufacturer COILCRAFT
Other Part Numbers
2457-XEL4030-201MEC-ND
2457-XEL4030-201MEC
Description FIXED IND 200NH 21.6A 2.4MOHM SM
Detailed Description 200 nH Shielded Molded Inductor 21.6 A 2.4mOhm Max 1616 (4040 Metric)
Datasheet Datasheet

Product Attributes

Category
Manufacturer COILCRAFT
Series
XEL4030
Packaging
Tape & Reel (TR)
Part Status Active
Tolerance ±20%
Package / Case 1616 (4040 Metric)
Size / Dimension 0.157" L x 0.157" W (4.00mm x 4.00mm)
Mounting Type Surface Mount
Shielding Shielded
Type Molded
Operating Temperature -40°C ~ 125°C
DC Resistance (DCR) 2.4mOhm Max
Frequency - Self Resonant 240MHz
Ratings AEC-Q200
Current - Saturation (Isat) 22A
Material - Core Metal Composite
Inductance Frequency - Test 1 MHz
Supplier Device Package 1616
Height - Seated (Max) 0.126" (3.20mm)
Inductance 200 nH
Current Rating (Amps) 21.6 A

Documents & Media

RESOURCE TYPE LINK
Datasheets XEL4030-201MEC

Environmental & Export Classifications

ATTRIBUTE DESCRIPTION
ECCN EAR99
HTSUS 8504.50.8000
RoHS Status ROHS3 Compliant

Available To Order
