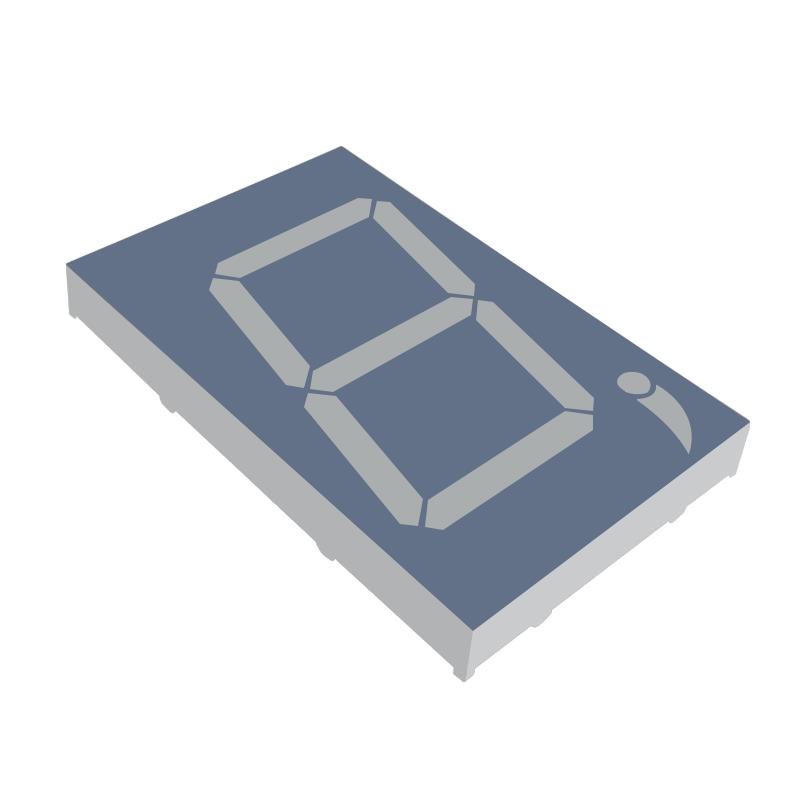

XDMDK76A-A

XDMDK76A-A

Part Number	XDMDK76A-A
Manufacturer	SunLED
Other Part Numbers	1497-XDMDK76A-A-ND 1497-XDMDK76A-A
Description	3" RED LED DISPLAY
Detailed Description	Display Modules - LED Character and Numeric Red 7-Segment 1 Character Common Anode 11.1V 10mA 4.331" H x 2.756" W x 0.512" D (110.00mm x 70.00mm x 13.00mm) 10-DIP (3.150", 80.00mm)
Manufacturer Standard Lead Time	6 weeks
Datasheet	Datasheet

Product Attributes

Category		Optoelectronics LED Character and Numeric
Manufacturer		SunLED
Series
Packaging		Box
Part Status		Active
Package / Case		10-DIP (3.150", 80.00mm)
Color		Red
Display Type		7-Segment
Size / Dimension		4.331" H x 2.756" W x 0.512" D (110.00mm x 70.00mm x 13.00mm)
Number of Characters		1
Millicandela Rating		329.99mcd
Common Pin		Common Anode
Digit/Alpha Size		2.99" (76.00mm)
Voltage - Forward (Vf) (Typ)		11.1V
Current - Test		10mA
Wavelength - Peak		650nm
Power Dissipation (Max)		450mW

Documents & Media

RESOURCE TYPE		LINK
Datasheets		XDMDK76A-A

Environmental & Export Classifications

ATTRIBUTE		DESCRIPTION
ECCN		EAR99
HTSUS		8541.41.0000
Moisture Sensitivity Level (MSL)		Not Applicable
REACH Status		REACH Unaffected
RoHS Status		ROHS3 Compliant

In Stock: 65

Can ship immediately.
