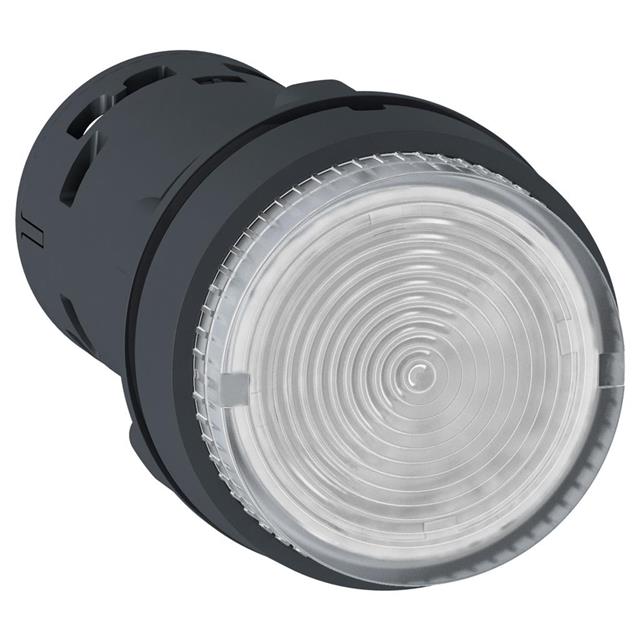

XB7NW37M1 _ Pushbutton Switches_Switches

Part Number	XB7NW37M1
Manufacturer	Schneider Electric
Other Part Numbers	4008-XB7NW37M1-ND 4008-XB7NW37M1
Description	HARMONY XB7, MONOLITHIC ILLUMINA
Detailed Description	Pushbutton Switch SPST-NO Standard, Illuminated Panel Mount, Front
Datasheet	Datasheet

Category		Switches Pushbutton Switches
Manufacturer		Schneider Electric
Series		Harmony XB7
Packaging		Box
Part Status		Active
Current Rating (Amps)		600mA (AC), 220mA (DC)
Mounting Type		Panel Mount, Front
Circuit		SPST-NO
Type		Standard, Illuminated
Switch Function		On-Off
Operating Temperature		-25°C ~ 70°C
Termination Style		Screw Terminal
Illumination Type, Color		LED, Clear
Illumination Voltage (Nominal)		230 VAC
Actuator Type		Round, Button, Flush
Ingress Protection		IP65 - Dust Tight, Water Resistant
Panel Cutout Dimensions		Circular - 22.00mm Dia
Color - Actuator/Cap		Clear
Voltage Rating - AC		120 V
Voltage Rating - DC		125 V

RESOURCE TYPE		LINK
Datasheets		XB7NW37M1

ATTRIBUTE		DESCRIPTION
ECCN		EAR99
HTSUS		8536.50.9033
Moisture Sensitivity Level (MSL)		1 (Unlimited)
RoHS Status		ROHS3 Compliant

Can ship immediately.
