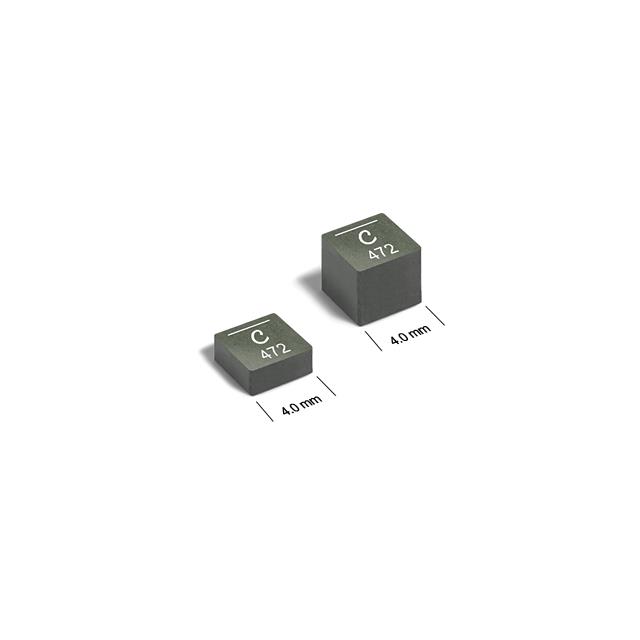

XAL4040-103MEC

Part Number
XAL4040-103MEC
Manufacturer COILCRAFT
Other Part Numbers
2457-XAL4040-103MEC-ND
2457-XAL4040-103MEC
Description FIXED IND 10UH 3.1A 92.4MOHM SM
Detailed Description 10 µH Shielded Molded Inductor 3.1 A 92.4mOhm Max 1616 (4040 Metric)
Datasheet Datasheet

Product Attributes

Category
Manufacturer COILCRAFT
Series
XAL4000
Packaging
Tape & Reel (TR)
Part Status Active
Tolerance ±20%
Package / Case 1616 (4040 Metric)
Size / Dimension 0.157" L x 0.157" W (4.00mm x 4.00mm)
Mounting Type Surface Mount
Shielding Shielded
Type Molded
Operating Temperature -40°C ~ 125°C
DC Resistance (DCR) 92.4mOhm Max
Frequency - Self Resonant 24MHz
Ratings AEC-Q200
Current - Saturation (Isat) 3A
Material - Core Metal Composite
Inductance Frequency - Test 1 MHz
Supplier Device Package 1616
Height - Seated (Max) 0.161" (4.10mm)
Inductance 10 µH
Current Rating (Amps) 3.1 A

Documents & Media

RESOURCE TYPE LINK
Datasheets XAL4040-103MEC

Environmental & Export Classifications

ATTRIBUTE DESCRIPTION
ECCN EAR99
HTSUS 8504.50.8000
REACH Status REACH Unaffected
RoHS Status ROHS3 Compliant
