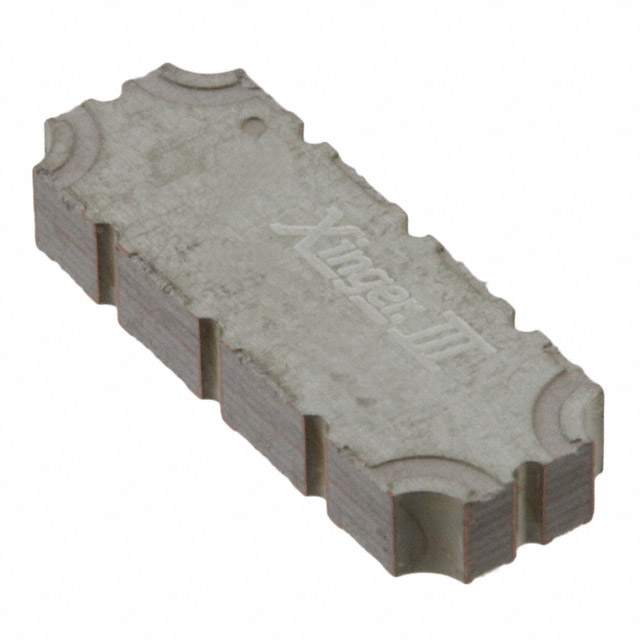

X3C19E2-20S

X3C19E2-20S

Part Number	X3C19E2-20S
Manufacturer	TTM Technologies / Anaren Wireless
Other Part Numbers	1173-1108-2-ND 1173-1108-1-ND 1173-1108-6-ND X3C19E220S 1173-1108-6 1173-1108-2 1173-1108-1
Description	RF DIR COUPLER 1.4GHZ-2.7GHZ SMD
Detailed Description	RF Directional Coupler DCS, PCS, WCDMA 1.4GHz ~ 2.7GHz 20.3dB 225W 4-SMD, No Lead
Manufacturer Standard Lead Time	12 weeks

Product Attributes

Category		RF and Wireless RF Directional Coupler
Manufacturer		TTM Technologies / Anaren Wireless
Series		Xinger® III
Packaging		Tape & Reel (TR) Cut Tape (CT)
Part Status		Active
Package / Case		4-SMD, No Lead
Frequency		1.4GHz ~ 2.7GHz
Insertion Loss		0.1dB
Applications		DCS, PCS, WCDMA
Power - Max		225W
Coupling Factor		20.3dB
Coupler Type		Standard
Return Loss		24.9dB
Supplier Device Package		SMD

Documents & Media

RESOURCE TYPE		LINK

Environmental & Export Classifications

ATTRIBUTE		DESCRIPTION
ECCN		EAR99
HTSUS		8517.79.0000
Moisture Sensitivity Level (MSL)		1 (Unlimited)
REACH Status		REACH Unaffected
RoHS Status		RoHS Compliant

In Stock: 1934

Can ship immediately.
