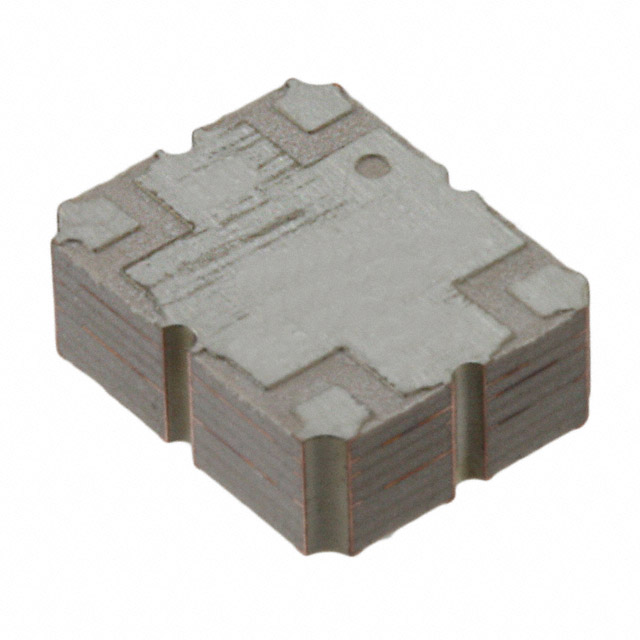

X3C09P2-30S

Part Number
X3C09P2-30S
Manufacturer TTM Technologies / Anaren Wireless
Other Part Numbers
1173-1107-2-ND
1173-1107-1-ND
1173-1107-6-ND
X3C09P2-30S REEL 3DB
X3C09P2-30SR
1173-1107-6
1173-1107-2
X3C09P230S
1173-1107-1
Description RF DIR COUPLER 800MHZ-1GHZ 4SMD
Detailed Description RF Directional Coupler AMPS, CDMA, WCDMA 800MHz ~ 1GHz 30.2dB 225W 2520 (6450 Metric)
Manufacturer Standard Lead Time 12 weeks

Product Attributes

Category
Manufacturer TTM Technologies / Anaren Wireless
Series
Xinger® III
Packaging
Tape & Reel (TR)
Cut Tape (CT)
Part Status Active
Package / Case 2520 (6450 Metric)
Frequency 800MHz ~ 1GHz
Insertion Loss 0.1dB
Applications AMPS, CDMA, WCDMA
Power - Max 225W
Coupling Factor 30.2dB
Coupler Type Standard
Return Loss 24.9dB
Supplier Device Package 4-SMD

Documents & Media

RESOURCE TYPE LINK

Environmental & Export Classifications

ATTRIBUTE DESCRIPTION
ECCN EAR99
HTSUS 8517.79.0000
Moisture Sensitivity Level (MSL) 1 (Unlimited)
REACH Status REACH Unaffected
RoHS Status RoHS Compliant

In Stock: 5144

Can ship immediately.
