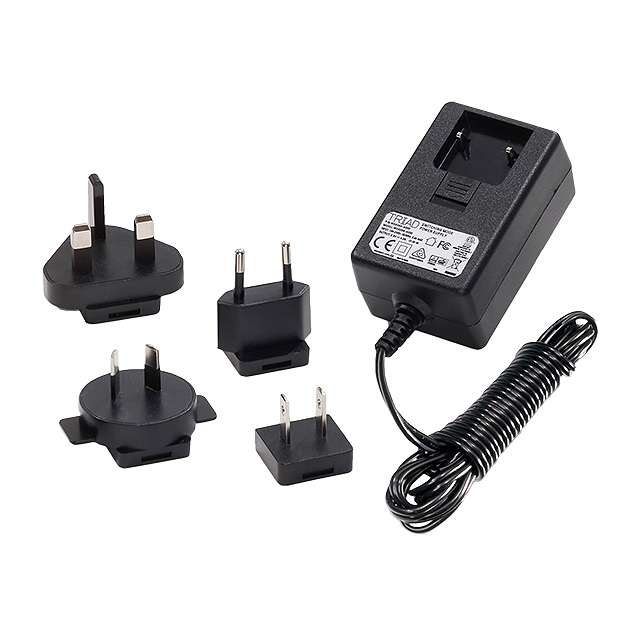

WSX120-2000-R _ AC DC Desktop, Wall Power Adapters_Power Supplies

Part Number	WSX120-2000-R
Manufacturer	Triad Magnetics
Other Part Numbers	237-2142-ND 237-2142
Description	AC/DC WALL MOUNT ADAPTER 12V 24W
Detailed Description	12V 24 W AC/DC External Wall Mount (Class II) Adapter Multi-Blade (Included) Input
Manufacturer Standard Lead Time	19 weeks

Category		Power Supplies - External/Internal (Off-Board) AC DC Desktop, Wall Power Adapters
Manufacturer		Triad Magnetics
Series		WSX
Packaging		Bulk
Part Status		Active
Size / Dimension		3.02" L x 1.87" W x 1.38" H (76.8mm x 47.5mm x 35.0mm)
Voltage - Output		12V
Polarization		Negative Center
Output Connector		Barrel Plug, 2.1mm I.D. x 5.5mm O.D. x 11.0mm
Voltage - Input		90 ~ 264 VAC
Cord Length		72" (1.83m)
Operating Temperature		0°C ~ 45°C
Applications		ITE (Commercial)
Input Type		Multi-Blade (Included)
Approval Agency		CE, cETLus, FCC, GS, RCM
Form		Wall Mount (Class II)
Efficiency		Level VI
Current - Output (Max)		2A
Input Connector		Multi-Blade
Region Utilized		International
No Load Power Consumption		100mW (Max)
Power (Watts)		24 W

RESOURCE TYPE		LINK
Datasheets		WSX120-2000-R
Datasheets		Standard Part Warranty Terms
Datasheets		RoHS Statement

ATTRIBUTE		DESCRIPTION
ECCN		EAR99
HTSUS		8504.40.7001
Moisture Sensitivity Level (MSL)		Not Applicable
REACH Status		REACH Unaffected
RoHS Status		ROHS3 Compliant

Can ship immediately.
