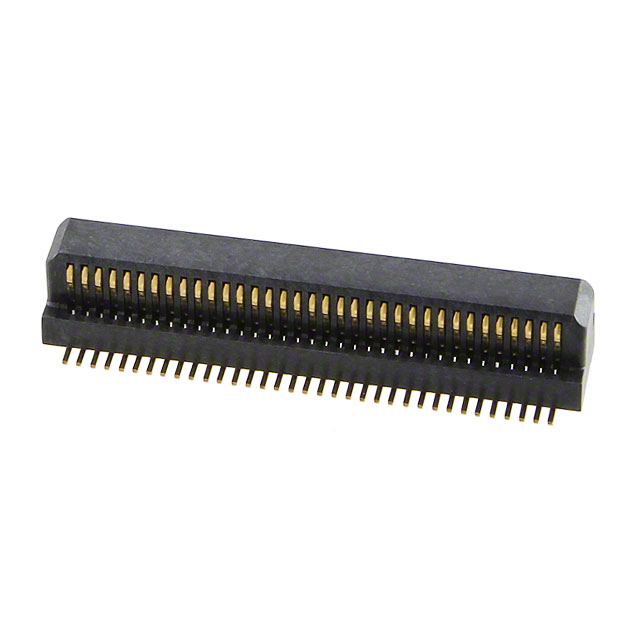

WR-70S-VFH05-N1

WR-70S-VFH05-N1

Part Number
WR-70S-VFH05-N1
Manufacturer JAE Electronics
Other Part Numbers
670-1994-ND
-670-1994-1-ND
670-1994
-670-1994-2
-670-1994-1
-WR-70S-VFH05-N1
WR70SVFH05N1
-670-1994
-670-1994-ND
WR-70S-VFH05-N1-ND
Description CONN RCPT 70POS SMD GOLD
Detailed Description 70 Position Connector Receptacle, Center Strip Contacts Surface Mount Gold
Manufacturer Standard Lead Time 15 weeks
Datasheet Datasheet

Product Attributes

Category
Manufacturer JAE Electronics
Series
WR
Packaging
Strip
Part Status Active
Connector Type Receptacle, Center Strip Contacts
Contact Finish Gold
Mounting Type Surface Mount
Number of Positions 70
Pitch 0.020" (0.50mm)
Height Above Board 0.148" (3.75mm)
Contact Finish Thickness 4.00µin (0.100µm)
Mated Stacking Heights 4.5mm, 5.5mm, 6.5mm
Number of Rows 2

Documents & Media

RESOURCE TYPE LINK
Datasheets WR-70S-VFH05-N1
Datasheets WR Socket Series
Datasheets Mult Dev RETRACTION 28/Apr/2015
Datasheets WR Receptacle with Post Top
Datasheets WR Series Receptacle with Post End
Datasheets WR-xS-VFH05-N1 Drawing

Environmental & Export Classifications

ATTRIBUTE DESCRIPTION
California Prop 65 California Prop 65 Information
ECCN EAR99
HTSUS 8536.69.4040
Moisture Sensitivity Level (MSL) 1 (Unlimited)
RoHS Status RoHS Compliant
