WR-30P-VF-N1

WR-30P-VF-N1

Part Number	WR-30P-VF-N1
Manufacturer	JAE Electronics
Other Part Numbers	670-1775-ND -670-1775-2 -670-1775-ND 670-1775 WR30PVFN1 -WR-30P-VF-N1 WR-30P-VF-N1-ND -670-1775-1 -670-1775-1-ND -670-1775

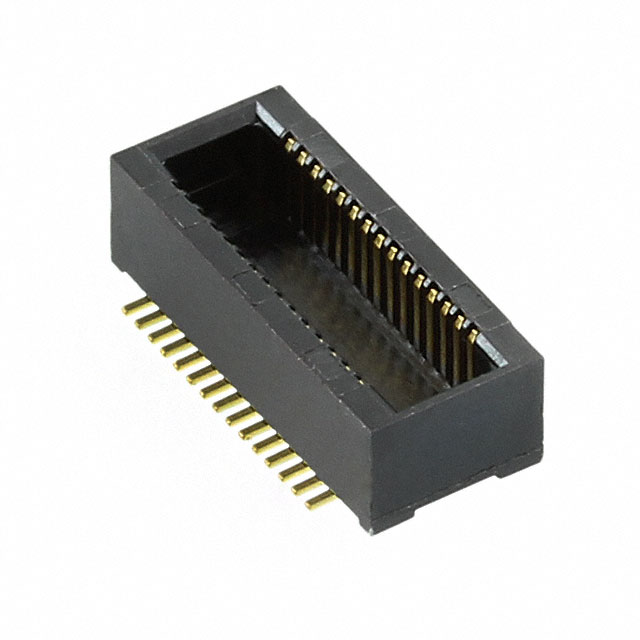

Description	CONN PLUG 30POS SMD GOLD
Detailed Description	30 Position Connector Plug, Outer Shroud Contacts Surface Mount Gold
Manufacturer Standard Lead Time	15 weeks
Datasheet	Datasheet

Product Attributes

Category		Connectors, Interconnects Rectangular Connectors Arrays, Edge Type, Mezzanine (Board to Board)
Manufacturer		JAE Electronics
Series		WR
Packaging		Strip
Part Status		Active
Connector Type		Plug, Outer Shroud Contacts
Contact Finish		Gold
Mounting Type		Surface Mount
Number of Positions		30
Pitch		0.020" (0.50mm)
Height Above Board		0.118" (3.00mm)
Contact Finish Thickness		4.00µin (0.100µm)
Mated Stacking Heights		4mm, 4.5mm, 7mm
Number of Rows		2

Documents & Media

RESOURCE TYPE		LINK
Datasheets		WR-30P-VF-N1
Datasheets		WR Socket Series
Datasheets		Mult Dev RETRACTION 28/Apr/2015
Datasheets		WR-xP-VF-N1 Drawing
Datasheets		WR Series SMD Plug End
Datasheets		WR SMD Plug Top

Environmental & Export Classifications

ATTRIBUTE		DESCRIPTION
California Prop 65		California Prop 65 Information
ECCN		EAR99
HTSUS		8536.69.4040
Moisture Sensitivity Level (MSL)		1 (Unlimited)
RoHS Status		RoHS Compliant
