WMS7170100M

Part Number
WMS7170100M
Manufacturer Nuvoton Technology Corporation
Other Part Numbers
WMS7170100M-ND
Description IC DGTL POT 100KOHM 100TAP 8MSOP
Detailed Description Digital Potentiometer 100k Ohm 1 Circuit 100 Taps Up/Down (U/D, INC, CS) Interface 8-MSOP
Datasheet Datasheet

Product Attributes

Category
Manufacturer Nuvoton Technology Corporation
Series
Packaging
Tube
Part Status Obsolete
Resistance (Ohms) 100k
Tolerance ±20%

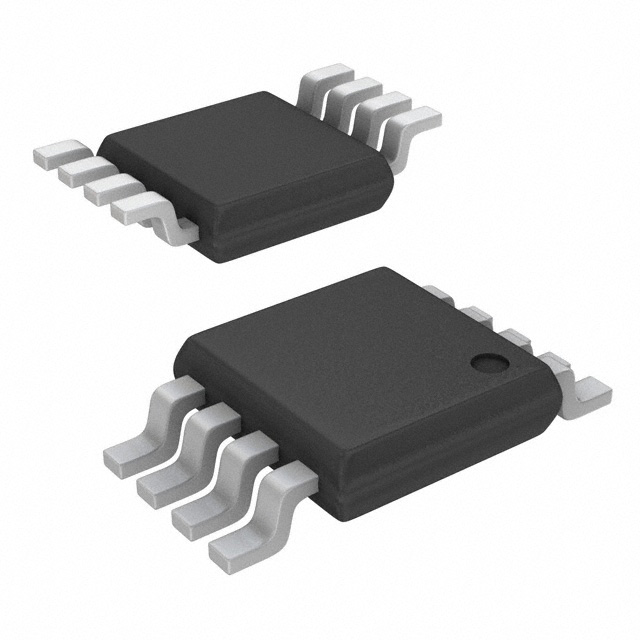

Package / Case 8-TSSOP, 8-MSOP (0.118", 3.00mm Width)
Mounting Type Surface Mount
Memory Type Non-Volatile
Interface Up/Down (U/D, INC, CS)
Configuration Potentiometer
Operating Temperature -40°C ~ 85°C
Number of Taps 100
Voltage - Supply 2.7V ~ 5.5V
Taper Linear
Supplier Device Package 8-MSOP
Resistance - Wiper (Ohms) (Typ) 80
Temperature Coefficient (Typ) 300ppm/°C
Number of Circuits 1
DigiKey Programmable Not Verified

Documents & Media

RESOURCE TYPE LINK
Datasheets WMS7170100M
Datasheets Dessicant Supplier Chg 3/May/2016

Environmental & Export Classifications

ATTRIBUTE DESCRIPTION
ECCN EAR99
HTSUS 8542.39.0001
Moisture Sensitivity Level (MSL) 1 (Unlimited)
REACH Status REACH Unaffected
RoHS Status RoHS non-compliant

Obsolete

This product is no longer manufactured.
