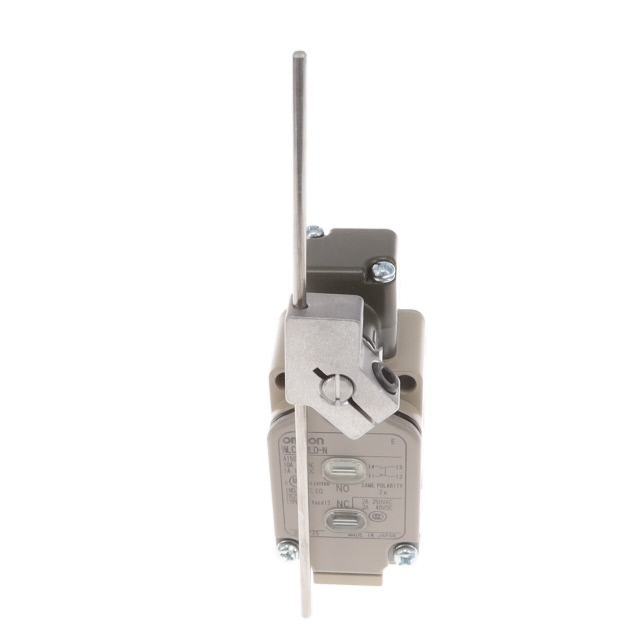

WLCL-2LD-N

WLCL-2LD-N

Part Number	WLCL-2LD-N
Manufacturer	Omron Automation
Other Part Numbers	Z10543-ND Z10543 WLCL-2LD-N-ND WLCL2LDN
Description	SWITCH SNAP ACTION SPDT 10A 125V
Detailed Description	Switch SPDT (DB/DM) Chassis Mount
Manufacturer Standard Lead Time	13 weeks
Datasheet	Datasheet

Product Attributes

Category		Switches Limit Switches
Manufacturer		Omron Automation
Series		WL-N
Packaging		Bulk
Part Status		Active
Features		Status Indicator
Current Rating (Amps)		10A (AC), 6A (DC)
Mounting Type		Chassis Mount
Circuit		SPDT (DB/DM)
Switch Function		On-Mom
Operating Temperature		-10°C ~ 80°C
Termination Style		Screw Terminal
Actuator Type		Side Rotary, Adjustable Rod
Operating Force		142gf
Ingress Protection		IP67 - Dust Tight, Waterproof
Release Force		28gf
Pretravel		25°
Differential Travel		16°
Overtravel		60°
Voltage Rating - AC		125 V
Voltage Rating - DC		30 V

Documents & Media

RESOURCE TYPE		LINK
Datasheets		WLCL-2LD-N

Environmental & Export Classifications

ATTRIBUTE		DESCRIPTION
ECCN		EAR99
HTSUS		8536.50.7000
Moisture Sensitivity Level (MSL)		Not Applicable

In Stock: 4

Can ship immediately.
