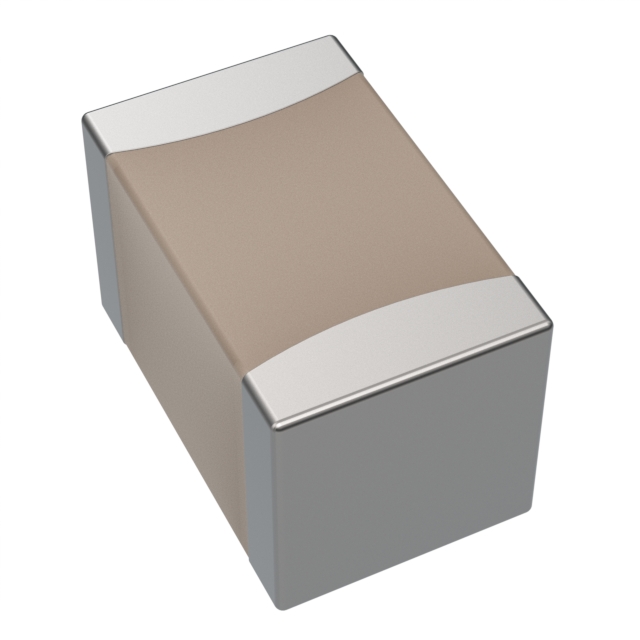

WLBD2012HCU121TH

WLBD2012HCU121TH

Part Number	WLBD2012HCU121TH
Manufacturer	Walsin Technology
Other Part Numbers	1292-WLBD2012HCU121THTR-ND 1292-WLBD2012HCU121THCT-ND 1292-WLBD2012HCU121THDKR-ND 1292-WLBD2012HCU121THTR 1292-WLBD2012HCU121THCT 1292-WLBD2012HCU121THDKR
Description	FERRITE BEAD 120 OHM 0805 1LN
Detailed Description	120 Ohms @ 100 MHz 1 Power Line Ferrite Bead 0805 (2012 Metric) 5A 20mOhm
Manufacturer Standard Lead Time	20 weeks
Datasheet	Datasheet

Product Attributes

Category		Filters Ferrite Beads and Chips
Manufacturer		Walsin Technology
Series
Packaging		Tape & Reel (TR) Cut Tape (CT)
Part Status		Active
Package / Case		0805 (2012 Metric)
Filter Type		Power Line
Size / Dimension		0.079" L x 0.049" W (2.00mm x 1.25mm)
Mounting Type		Surface Mount
Operating Temperature		-55°C ~ 125°C
Height (Max)		0.049" (1.25mm)
Current Rating (Max)		5A
DC Resistance (DCR) (Max)		20mOhm
Number of Lines		1
Impedance @ Frequency		120 Ohms @ 100 MHz

Documents & Media

RESOURCE TYPE		LINK
Datasheets		WLBD2012HCU121TH
Datasheets		Walsin Technology Corporation RoHS/REACH

Environmental & Export Classifications

ATTRIBUTE		DESCRIPTION
ECCN		EAR99
HTSUS		8548.00.0000
Moisture Sensitivity Level (MSL)		1 (Unlimited)
REACH Status		REACH Unaffected
RoHS Status		ROHS3 Compliant

In Stock: 3898

Can ship immediately.
