WAVE-45-12

Part Number
WAVE-45-12
Manufacturer Wakefield Thermal
Other Part Numbers
345-1543-ND
345-1543

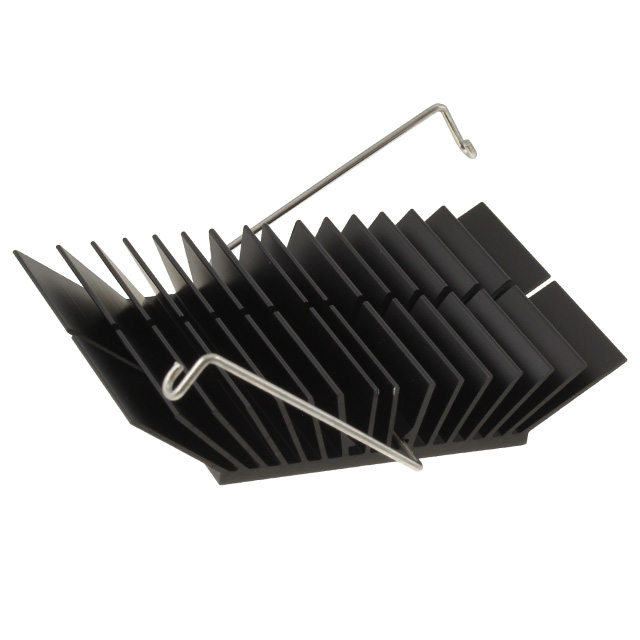

Description ANCHOR HEATSINK 45X45X12MM
Detailed Description Heat Sink BGA Aluminum Alloy Board Level
Datasheet Datasheet

Product Attributes

Category
Manufacturer Wakefield Thermal
Series
Wave 4x
Packaging
Bulk
Part Status Active
Material Aluminum Alloy
Length 1.772" (45.00mm)
Shape Square, Angled Fins
Type Board Level
Width 1.772" (45.00mm)
Package Cooled BGA
Attachment Method Clip
Thermal Resistance @ Forced Air Flow 2.96°C/W @ 200 LFM
Fin Height 0.472" (12.00mm)
Material Finish Black Anodized

Documents & Media

Environmental & Export Classifications

ATTRIBUTE DESCRIPTION
ECCN EAR99
HTSUS 8473.30.5100
Moisture Sensitivity Level (MSL) Not Applicable
REACH Status REACH Unaffected
RoHS Status ROHS3 Compliant

In Stock: 519

Can ship immediately.
