WAU24-200 _ AC AC Wall Power Adapters_Power Supplies

Part Number	WAU24-200
Manufacturer	Triad Magnetics
Other Part Numbers	237-1892-ND 237-1892

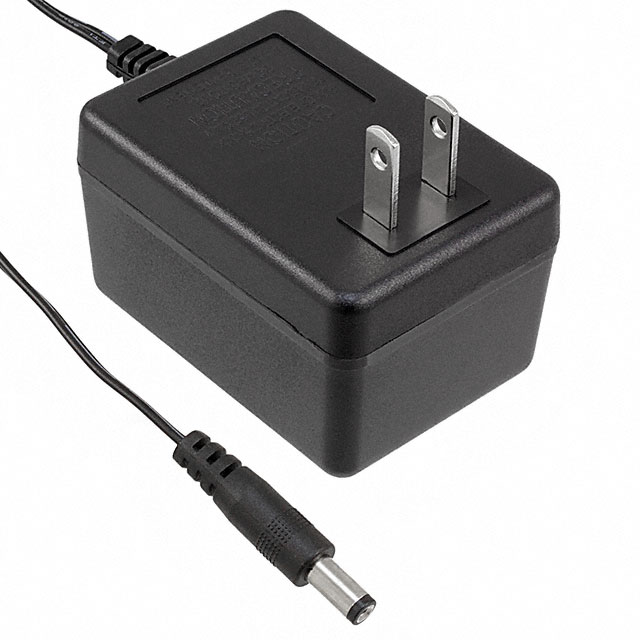

Description	AC/AC WALL MNT ADPT 24VAC 200MA
Detailed Description	24VAC 200mA AC/AC External Wall Mount Adapter Fixed Blade Input
Manufacturer Standard Lead Time	19 weeks

Category		Power Supplies - External/Internal (Off-Board) AC AC Wall Power Adapters
Manufacturer		Triad Magnetics
Series		WAU24
Packaging		Box
Part Status		Active
Size / Dimension		1.61" L x 1.97" W x 2.76" H (41.0mm x 50.0mm x 70.0mm)
Voltage - Output		24VAC
Output Connector		Barrel Plug, 2.1mm I.D. x 5.5mm O.D. x 11.0mm
Voltage - Input		120VAC
Cord Length		72" (1.83m)
Operating Temperature		-10°C ~ 40°C
Applications		ITE (Commercial)
Input Type		Fixed Blade
Approval Agency		cUL, UL
Form		Wall Mount
Efficiency		80%
Current - Output (Max)		200mA
Input Connector		NEMA 1-15P
Region Utilized		North America
No Load Power Consumption		500mW (Max)
Power (Watts)		5 W

RESOURCE TYPE		LINK

ATTRIBUTE		DESCRIPTION
ECCN		EAR99
HTSUS		8504.40.7001
Moisture Sensitivity Level (MSL)		Not Applicable
REACH Status		REACH Unaffected
RoHS Status		ROHS3 Compliant
