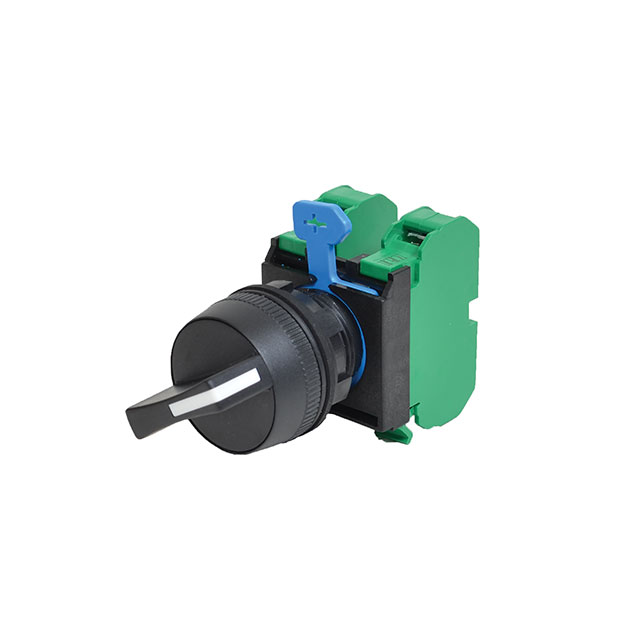

W22S3-HW-10/10

W22S3-HW-10/10

Part Number	W22S3-HW-10/10
Manufacturer	c3controls
Other Part Numbers	2649-W22S3-HW-10/10-ND 2649-W22S3-HW-10/10
Description	SWITCH SELECT 3POS DPST 10A 72V
Detailed Description	Selector Switch 3 Position DPST-NO 10A (AC), 2.5A (DC) 72 V Panel Mount

Product Attributes

Category		Switches Selector Switches
Manufacturer		c3controls
Series		22
Packaging		Bag
Part Status		Active
Current Rating (Amps)		10A (AC), 2.5A (DC)
Mounting Type		Panel Mount
Circuit		DPST-NO
Type		Standard
Switch Function		On-Off-Off, Off-Off-On
Operating Temperature		-40°C ~ 55°C
Termination Style		Screw Terminal
Illumination		Non-Illuminated
Ingress Protection		IP66 - Dust Tight, Water Resistant
Panel Cutout Dimensions		Circular - 22.50mm Dia
Voltage Rating - AC		72 V
Voltage Rating - DC		28 V
Number of Positions		3

Documents & Media

RESOURCE TYPE		LINK

Environmental & Export Classifications

ATTRIBUTE		DESCRIPTION
HTSUS		8536.50.9025
Moisture Sensitivity Level (MSL)		1 (Unlimited)
RoHS Status		ROHS3 Compliant
