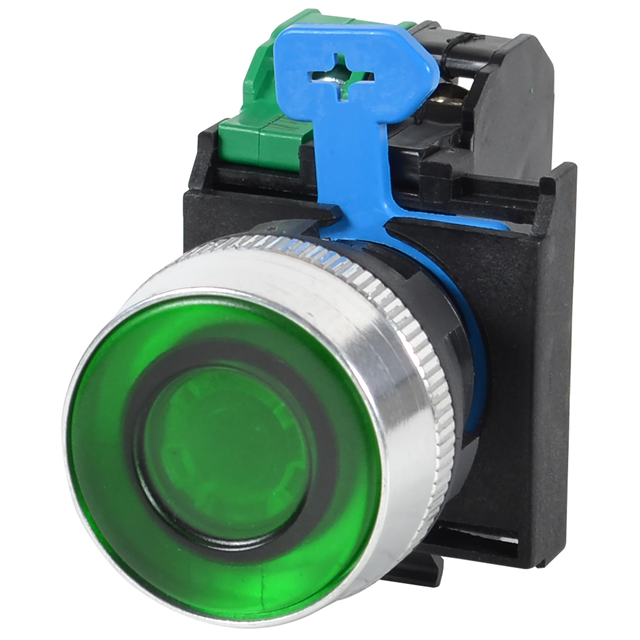

W22IPB-FG-FM24LG-10/01 _ Pushbutton Switches_Switches

Part Number	W22IPB-FG-FM24LG-10/01
Manufacturer	c3controls
Other Part Numbers	2649-W22IPB-FG-FM24LG-10/01-ND 2649-W22IPB-FG-FM24LG-10/01
Description	22MM IPB 24V GN LED/LENS 1NO/1NC
Detailed Description	Pushbutton Switch DPST-NO/NC Standard, Illuminated Panel Mount, Rear

Category		Switches Pushbutton Switches
Manufacturer		c3controls
Series		22
Packaging		Bag
Part Status		Active
Current Rating (Amps)		10A (AC), 2.5A (DC)
Mounting Type		Panel Mount, Rear
Circuit		DPST-NO/NC
Type		Standard, Illuminated
Switch Function		On-Mom, Off-Mom
Operating Temperature		-40°C ~ 55°C
Termination Style		Screw Terminal
Illumination Type, Color		LED, Green
Illumination Voltage (Nominal)		24 VAC/DC
Actuator Type		Round, Button, Flush
Ingress Protection		IP66 - Dust Tight, Water Resistant
Panel Cutout Dimensions		Circular - 22.50mm Dia
Color - Actuator/Cap		Green
Actuator Marking		No Marking
Voltage Rating - AC		72 V
Voltage Rating - DC		28 V

RESOURCE TYPE		LINK

ATTRIBUTE		DESCRIPTION
HTSUS		8536.50.9035
Moisture Sensitivity Level (MSL)		1 (Unlimited)
RoHS Status		ROHS3 Compliant
