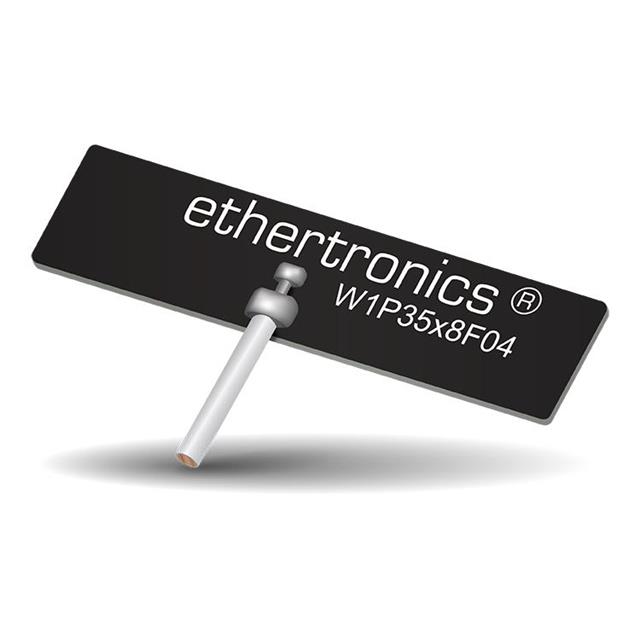

W1P35X8W04-U100D3B0A

W1P35X8W04-U100D3B0A

Part Number	W1P35X8W04-U100D3B0A
Manufacturer	KYOCERA AVX
Other Part Numbers	478-W1P35X8W04-U100D3B0A-ND 478-W1P35X8W04-U100D3B0A 939-W1P35X8W04-U100D3B0A-ND 939-W1P35X8W04-U100D3B0A
Description	ANT ASSY, WLAN1 04 100 D0230
Detailed Description	2.44GHz Bluetooth, Wi-Fi, WLAN, Zigbee™ PCB Trace RF Antenna 2.4GHz ~ 2.48GHz 2.8dBi U.FL Adhesive
Manufacturer Standard Lead Time	11 weeks
Datasheet	Datasheet

Product Attributes

Category		RF and Wireless RF Antennas
Manufacturer		KYOCERA AVX
Series
Packaging		Box
Part Status		Active
Features		Cable - 150mm
Mounting Type		Adhesive
Frequency Range		2.4GHz ~ 2.48GHz
Applications		Bluetooth, Wi-Fi, WLAN, Zigbee™
Gain		2.8dBi
Termination		U.FL
Number of Bands		1
Antenna Type		PCB Trace
Height (Max)		0.016" (0.40mm)
Return Loss		-15dB
Frequency Group		UHF (2GHz ~ 3GHz)
Frequency (Center/Band)		2.44GHz
RF Family/Standard		802.15.4, Bluetooth, WiFi

Documents & Media

RESOURCE TYPE		LINK
Datasheets		W1P35X8W04-U100D3B0A

Environmental & Export Classifications

ATTRIBUTE		DESCRIPTION
ECCN		EAR99
HTSUS		8517.71.0000
Moisture Sensitivity Level (MSL)		1 (Unlimited)

In Stock: 93

Can ship immediately.
