VTC100-1R2M-RC

Part Number
VTC100-1R2M-RC
Manufacturer Allied Components International
Other Part Numbers
3475-VTC100-1R2M-RC-ND
3475-VTC100-1R2M-RC
Description 1.2UH 20% Vrt Mnt Toroidal Chok

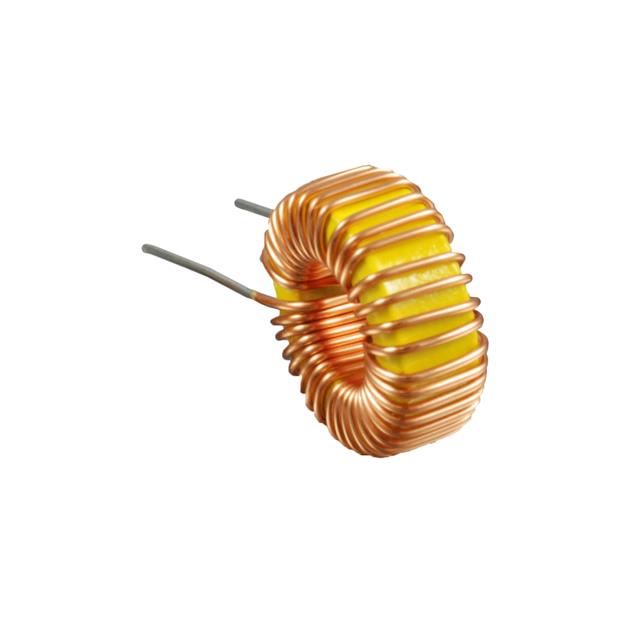

Detailed Description 1.2 µH Unshielded Toroidal Inductor 5 A 4mOhm Max Radial, Vertical (Open)
Datasheet Datasheet

Product Attributes

Category
Manufacturer Allied Components International
Series
TC100
Packaging
Tray
Part Status Active
Tolerance ±20%
Package / Case Radial, Vertical (Open)
Size / Dimension 0.580" Dia (14.73mm)
Mounting Type Through Hole
Shielding Unshielded
Type Toroidal
Operating Temperature -55°C ~ 105°C
DC Resistance (DCR) 4mOhm Max
Current - Saturation (Isat) 8.5A
Inductance Frequency - Test 1 kHz
Supplier Device Package Radial
Inductance 1.2 µH
Current Rating (Amps) 5 A

Documents & Media

RESOURCE TYPE LINK
Datasheets VTC100-1R2M-RC

Environmental & Export Classifications

ATTRIBUTE DESCRIPTION
ECCN EAR99
HTSUS 8504.50.4000
Moisture Sensitivity Level (MSL) 1 (Unlimited)
REACH Status REACH info available upon request
RoHS Status RoHS Compliant
