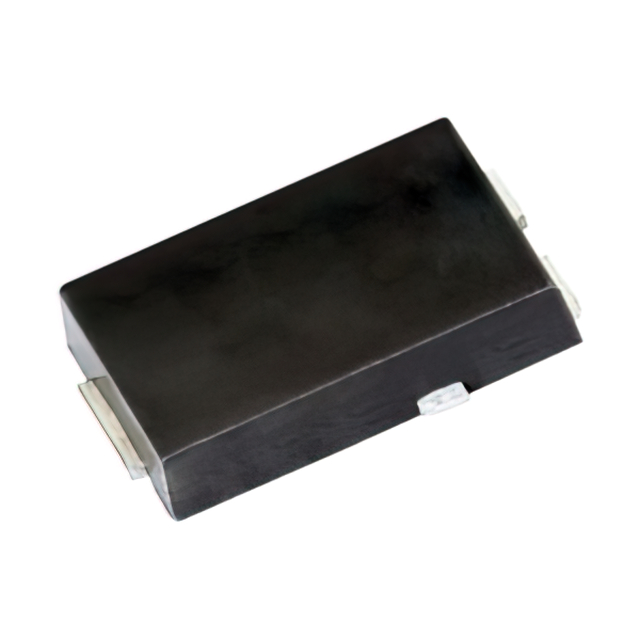

VS-8ESH06HM3/I

Part Number
VS-8ESH06HM3/I
Manufacturer Vishay
Other Part Numbers
112-VS-8ESH06HM3/ITR-ND
112-VS-8ESH06HM3/ITR
Description FREDS - SMPC
Detailed Description Diode 600 V 8A Surface Mount TO-277A (SMPC)
Manufacturer Standard Lead Time 10 weeks
Datasheet Datasheet

Product Attributes

Category
Manufacturer Vishay
Series
Packaging
Tape & Reel (TR)
Part Status Active
Package / Case TO-277, 3-PowerDFN
Mounting Type Surface Mount
Speed Fast Recovery =< 500ns, > 200mA (Io)
Reverse Recovery Time (trr) 40 ns
Technology Standard
Current - Average Rectified (Io) 8A
Supplier Device Package TO-277A (SMPC)
Operating Temperature - Junction -55°C ~ 175°C
Grade Automotive
Voltage - DC Reverse (Vr) (Max) 600 V
Voltage - Forward (Vf) (Max) @ If 1.91 V @ 8 A
Current - Reverse Leakage @ Vr 5 µA @ 600 V
Qualification AEC-Q101

Documents & Media

RESOURCE TYPE LINK
Datasheets VS-8ESH06HM3/I

Environmental & Export Classifications

ATTRIBUTE DESCRIPTION
ECCN EAR99
HTSUS 8541.10.0080
