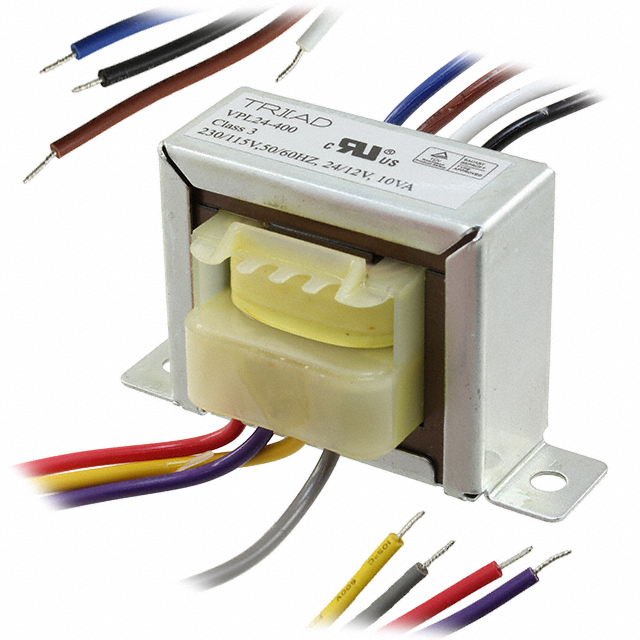

VPL24-400

VPL24-400

Part Number	VPL24-400
Manufacturer	Triad Magnetics
Other Part Numbers	237-1651-ND 237-1651
Description	PWR XFMR LAMINATED 10.0VA CHAS
Manufacturer Standard Lead Time	23 weeks

Product Attributes

Category		Transformers Power Transformers
Manufacturer		Triad Magnetics
Series		Chassis Mount: World Series™
Packaging		Box
Part Status		Active
Size / Dimension		36.52mm L x 71.44mm W
Mounting Type		Chassis Mount
Type		Laminated Core
Weight		0.7 lb (317.51 g)
Termination Style		Wire Leads
Primary Winding(s)		Dual
Secondary Winding(s)		Dual
Power - Max		10.0VA
Voltage - Isolation		3500Vrms
Current - Output (Max)		410mA
Voltage - Primary		115V, 230V
Height - Seated (Max)		44.45mm
Voltage - Secondary (Full Load)		24V
Center Tap		No

Documents & Media

RESOURCE TYPE		LINK

Environmental & Export Classifications

ATTRIBUTE		DESCRIPTION
ECCN		EAR99
HTSUS		8504.31.4035
Moisture Sensitivity Level (MSL)		Not Applicable
REACH Status		REACH Unaffected
RoHS Status		ROHS3 Compliant

In Stock: 8

Can ship immediately.
