VPDD501W103K1GV001E

VPDD501W103K1GV001E

Part Number
VPDD501W103K1GV001E
Manufacturer Johanson Dielectrics, Inc.
Other Part Numbers
709-VPDD501W103K1GV001ETR-ND
709-VPDD501W103K1GV001ECT-ND
709-VPDD501W103K1GV001EDKR-ND
709-1027-1-ND
709-VPDD501W103K1GV001ETR
709-1027-2-ND
709-1027-1
709-VPDD501W103K1GV001ECT
709-1027-2
709-VPDD501W103K1GV001EDKR
709-1027-6-ND
709-1027-6
501R18W103KV4E
501R18W103KV4T

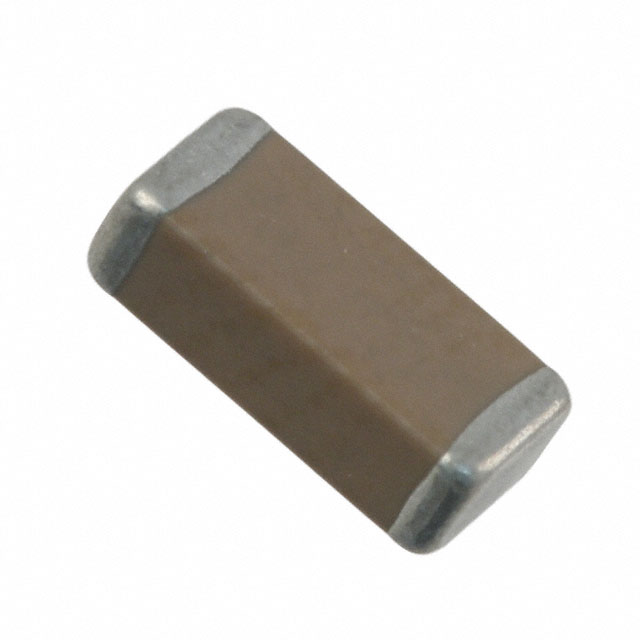

Description CAP CER 10000PF 500V X7R 1206
Detailed Description 10000 pF ±10% 500V Ceramic Capacitor X7R 1206 (3216 Metric)
Manufacturer Standard Lead Time 15 weeks
Datasheet Datasheet

Product Attributes

Category
Manufacturer Johanson Dielectrics, Inc.
Series
HVS-PME
Packaging
Tape & Reel (TR)
Cut Tape (CT)
Part Status Active
Tolerance ±10%
Features High Voltage
Voltage - Rated 500V
Package / Case 1206 (3216 Metric)
Temperature Coefficient X7R
Size / Dimension 0.125" L x 0.062" W (3.18mm x 1.57mm)
Mounting Type Surface Mount, MLCC
Operating Temperature -55°C ~ 125°C
Applications SMPS Filtering
Thickness (Max) 0.067" (1.70mm)
Capacitance 10000 pF

Documents & Media

RESOURCE TYPE LINK
Datasheets VPDD501W103K1GV001E
Datasheets Ceramic Cap Catalog
Datasheets RoHS Cert
Datasheets MLCC_1206-1.70

Environmental & Export Classifications

ATTRIBUTE DESCRIPTION
ECCN EAR99
HTSUS 8532.24.0020
Moisture Sensitivity Level (MSL) 1 (Unlimited)
REACH Status REACH Unaffected
RoHS Status ROHS3 Compliant

In Stock: 79603

Can ship immediately.
