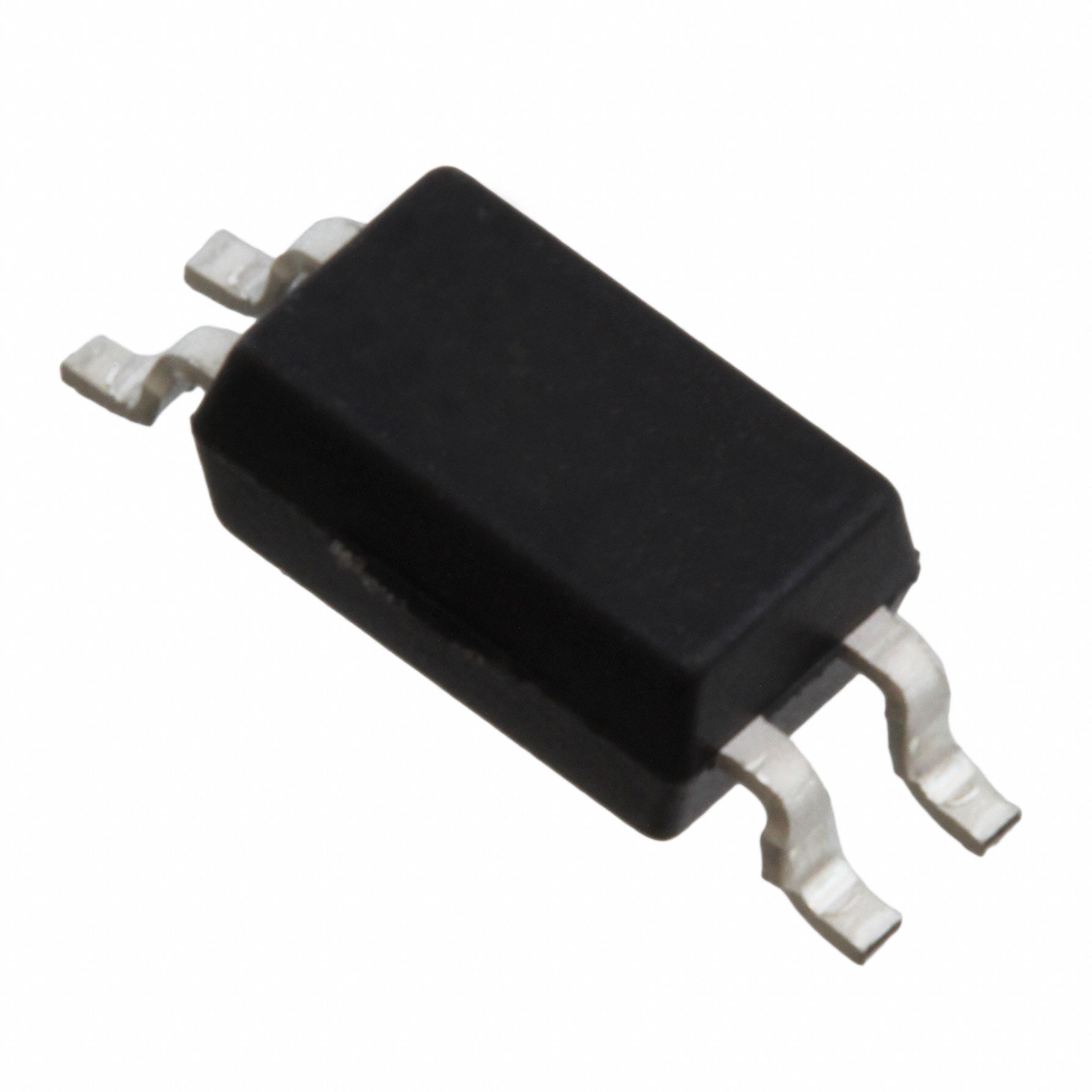

VOS617A-8X001T _ Transistor, Photovoltaic Output Optoisolators_Optoisolators_Isolators

Part Number	VOS617A-8X001T
Manufacturer	Vishay Semiconductor - Opto Division
Other Part Numbers	751-VOS617A-8X001TTR-ND 751-VOS617A-8X001TCT-ND 751-VOS617A-8X001TDKR-ND 751-VOS617A-8X001TDKR 751-VOS617A-8X001TTR 751-VOS617A-8X001TCT
Description	SSOP-4 OPTOCPL 80-160% CTR 5MA,
Detailed Description	Optoisolator Transistor Output 3750Vrms 1 Channel 4-SSOP
Manufacturer Standard Lead Time	12 weeks
Datasheet	Datasheet

Category		Isolators Optoisolators Transistor, Photovoltaic Output Optoisolators
Manufacturer		Vishay Semiconductor - Opto Division
Series		VOS617A
Packaging		Tape & Reel (TR) Cut Tape (CT)
Part Status		Active
Package / Case		4-SOIC (0.173", 4.40mm Width)
Output Type		Transistor
Mounting Type		Surface Mount
Operating Temperature		-55°C ~ 110°C
Voltage - Forward (Vf) (Typ)		1.18V
Input Type		DC
Current - Output / Channel		50mA
Voltage - Isolation		3750Vrms
Current Transfer Ratio (Min)		130% @ 5mA
Vce Saturation (Max)		400mV
Current Transfer Ratio (Max)		260% @ 5mA
Supplier Device Package		4-SSOP
Voltage - Output (Max)		80V
Turn On / Turn Off Time (Typ)		6µs, 4µs
Rise / Fall Time (Typ)		3µs, 3µs
Number of Channels		1
Current - DC Forward (If) (Max)		50 mA

RESOURCE TYPE		LINK
Datasheets		VOS617A-8X001T

ATTRIBUTE		DESCRIPTION
ECCN		EAR99
HTSUS		8541.49.8000
Moisture Sensitivity Level (MSL)		1 (Unlimited)
RoHS Status		ROHS3 Compliant
