VOMA617A-X001T _ Transistor, Photovoltaic Output Optoisolators_Optoisolators_Isolators

Part Number	VOMA617A-X001T
Manufacturer	Vishay Semiconductor - Opto Division
Other Part Numbers	VOMA617A-X001TTR-ND VOMA617A-X001TCT-ND VOMA617A-X001TDKR-ND VOMA617A-X001TDKR VOMA617A-X001TCT VOMA617A-X001T-ND VOMA617A-X001TTR
Description	SINGLE CHANNEL, 80V, SOP-4 PHOTO
Detailed Description	Optoisolator Transistor Output 3750Vrms 1 Channel 4-SOP
Manufacturer Standard Lead Time	6 weeks
Datasheet	Datasheet

Category		Isolators Optoisolators Transistor, Photovoltaic Output Optoisolators
Manufacturer		Vishay Semiconductor - Opto Division
Series		VOMA617A
Packaging		Tape & Reel (TR) Cut Tape (CT)
Part Status		Active

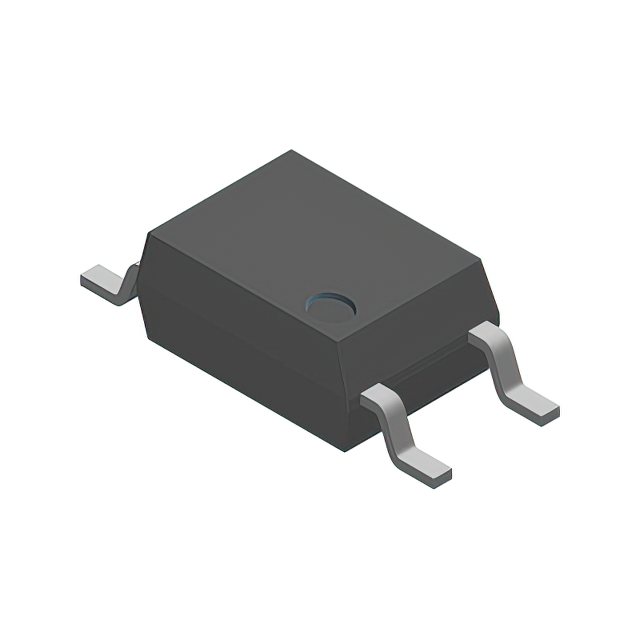

Package / Case		4-SMD, Gull Wing
Output Type		Transistor
Mounting Type		Surface Mount
Operating Temperature		-40°C ~ 110°C
Voltage - Forward (Vf) (Typ)		1.33V
Input Type		DC
Current - Output / Channel		50mA
Voltage - Isolation		3750Vrms
Current Transfer Ratio (Min)		50% @ 5mA
Vce Saturation (Max)		400mV
Current Transfer Ratio (Max)		600% @ 5mA
Supplier Device Package		4-SOP
Voltage - Output (Max)		80V
Turn On / Turn Off Time (Typ)		4.9µs, 3.3µs
Rise / Fall Time (Typ)		2.3µs, 3.2µs
Number of Channels		1
Current - DC Forward (If) (Max)		20 mA

RESOURCE TYPE		LINK
Datasheets		VOMA617A-X001T

ATTRIBUTE		DESCRIPTION
ECCN		EAR99
HTSUS		8541.49.8000
Moisture Sensitivity Level (MSL)		3 (168 Hours)
REACH Status		Vendor Undefined
RoHS Status		ROHS3 Compliant
