VLP5610T-100MR65

Part Number
VLP5610T-100MR65
Manufacturer TDK Corporation
Other Part Numbers
445-1923-1-ND
445-1923-1
445-1923-2
VLP5610T100MR65
-VLP5610T
445-1923-6
Description FIXED IND 10UH 650MA 450MOHM SMD

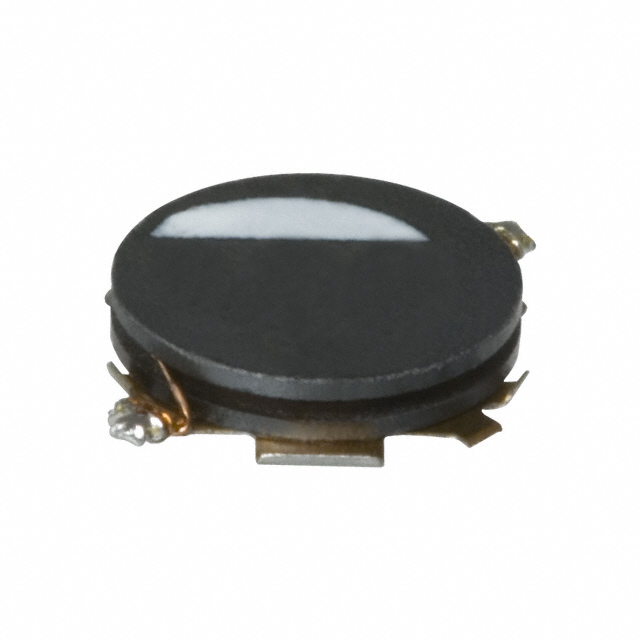

Detailed Description 10 µH Unshielded Wirewound Inductor 650 mA 450mOhm Max Nonstandard
Datasheet Datasheet

Product Attributes

Category
Manufacturer TDK Corporation
Series
VLP
Packaging
Cut Tape (CT)
Part Status Obsolete
Tolerance ±20%
Package / Case Nonstandard
Size / Dimension 0.220" L x 0.197" W (5.60mm x 5.00mm)
Mounting Type Surface Mount
Shielding Unshielded
Type Wirewound
DC Resistance (DCR) 450mOhm Max
Current - Saturation (Isat) 720mA
Inductance Frequency - Test 100 kHz
Height - Seated (Max) 0.039" (1.00mm)
Inductance 10 µH
Current Rating (Amps) 650 mA

Documents & Media

RESOURCE TYPE LINK
Datasheets VLP5610 Series Bottom

Environmental & Export Classifications

ATTRIBUTE DESCRIPTION
ECCN EAR99
HTSUS 8504.50.4000
Moisture Sensitivity Level (MSL) 1 (Unlimited)
REACH Status REACH Unaffected

Obsolete

This product is no longer manufactured.
