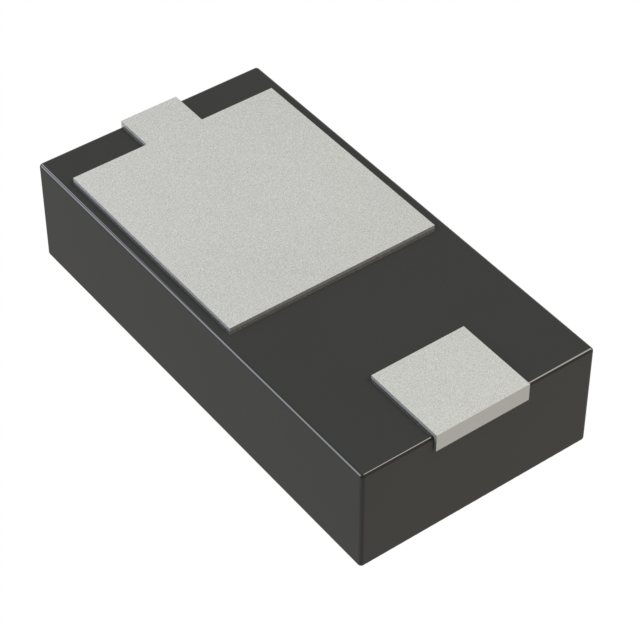

V2N22-M3/I

V2N22-M3/I

Part Number	V2N22-M3/I
Manufacturer	Vishay
Other Part Numbers	112-V2N22-M3/ITR-ND 112-V2N22-M3/ICT-ND 112-V2N22-M3/IDKR-ND 112-V2N22-M3/IDKR 112-V2N22-M3/ITR 112-V2N22-M3/ICT
Description	2A, 200V, DFN3820A TMBS RECT.
Detailed Description	Diode 200 V 1.5A Surface Mount, Wettable Flank DFN3820A
Manufacturer Standard Lead Time	10 weeks
Datasheet	Datasheet

Product Attributes

Category		Discrete Semiconductor Products Diodes Rectifiers Single Diodes
Manufacturer		Vishay
Series
Packaging		Tape & Reel (TR) Cut Tape (CT)
Part Status		Active
Package / Case		2-VDFN
Mounting Type		Surface Mount, Wettable Flank
Speed		Fast Recovery =< 500ns, > 200mA (Io)
Technology		Schottky
Capacitance @ Vr, F		110pF @ 4V, 1MHz
Current - Average Rectified (Io)		1.5A
Supplier Device Package		DFN3820A
Operating Temperature - Junction		-40°C ~ 175°C
Voltage - DC Reverse (Vr) (Max)		200 V
Voltage - Forward (Vf) (Max) @ If		850 mV @ 2 A
Current - Reverse Leakage @ Vr		40 µA @ 200 V

Documents & Media

RESOURCE TYPE		LINK
Datasheets		V2N22-M3/I

Environmental & Export Classifications

ATTRIBUTE		DESCRIPTION
ECCN		EAR99
HTSUS		8541.10.0080
Moisture Sensitivity Level (MSL)		Not Applicable
REACH Status		REACH Unaffected
RoHS Status		ROHS3 Compliant

In Stock: 14000

Can ship immediately.
