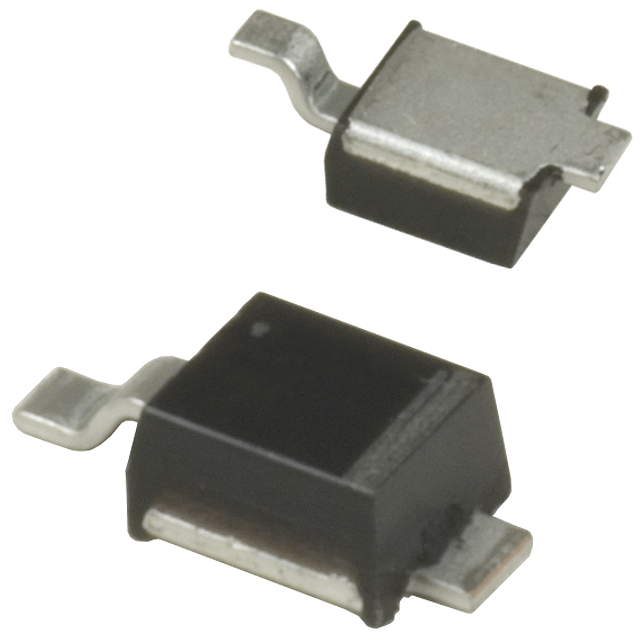

UPP1001/TR13

Part Number
UPP1001/TR13
Manufacturer Microsemi Corporation
Other Part Numbers
150-UPP1001/TR13TR-ND
150-UPP1001/TR13TR
UPP1001/TR13-ND
Description RF DIODE PIN 100V 2.5W DO216
Detailed Description RF Diode PIN - Single 100V 2.5 W DO-216
Manufacturer Standard Lead Time 20 weeks

Product Attributes

Category
Manufacturer Microsemi Corporation
Series
POWERMITE®
Packaging
Tape & Reel (TR)
Part Status Active
Package / Case DO-216AA
Diode Type PIN - Single
Operating Temperature -55°C ~ 150°C (TJ)
Capacitance @ Vr, F 1.6pF @ 100V, 1MHz
Resistance @ If, F 1Ohm @ 10mA, 100MHz
Voltage - Peak Reverse (Max) 100V
Supplier Device Package DO-216
Power Dissipation (Max) 2.5 W

Documents & Media

RESOURCE TYPE LINK

Environmental & Export Classifications

ATTRIBUTE DESCRIPTION
ECCN EAR99
HTSUS 8541.10.0080
Moisture Sensitivity Level (MSL) 1 (Unlimited)
REACH Status REACH Unaffected
RoHS Status RoHS non-compliant
