UM3670A

UM3670A

Part Number	UM3670A
Manufacturer	UNION SEMICONDUCTOR INTERNATIONAL LIMITED
Other Part Numbers	3351-UM3670ATR-ND 3351-UM3670ATR
Description	High Speed, Low Voltage, Dual, D
Detailed Description	2 Circuit IC Switch 2:2 10Ohm 16-QFN (2.6x1.8)
Datasheet	Datasheet

Product Attributes

Category		Integrated Circuits (ICs) Interface Analog Switches, Multiplexers, Demultiplexers
Manufacturer		UNION SEMICONDUCTOR INTERNATIONAL LIMITED
Series		UM3670
Packaging		Tape & Reel (TR)
Part Status		Active

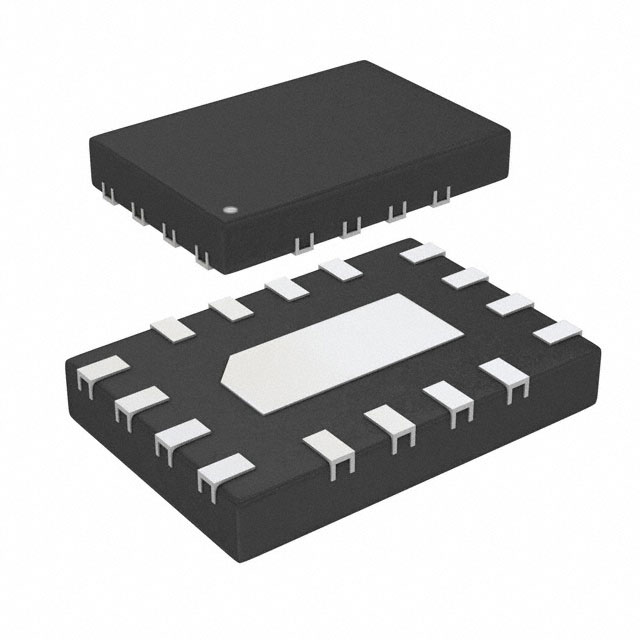

Package / Case		16-UFQFN
Mounting Type		Surface Mount
Operating Temperature		-40°C ~ 85°C
On-State Resistance (Max)		10Ohm
-3db Bandwidth		300MHz
Supplier Device Package		16-QFN (2.6x1.8)
Voltage - Supply, Single (V+)		1.8V ~ 5.5V
Crosstalk		-60dB @ 10MHz
Switch Circuit		DPDT - NO/NC
Multiplexer/Demultiplexer Circuit		2:2
Switch Time (Ton, Toff) (Max)		20ns, 10ns
Channel Capacitance (CS(off), CD(off))		9pF, 9pF
Number of Circuits		2

Documents & Media

RESOURCE TYPE		LINK
Datasheets		UM3670A

Environmental & Export Classifications

ATTRIBUTE		DESCRIPTION
ECCN		EAR99
HTSUS		8542.39.0001
REACH Status		REACH Unaffected
RoHS Status		RoHS Compliant
