UM3156 _ Analog Switches, Multiplexers, Demultiplexers_Interface_Integrated Circuits (ICs)

Part Number	UM3156
Manufacturer	UNION SEMICONDUCTOR INTERNATIONAL LIMITED
Other Part Numbers	3351-UM3156TR-ND 3351-UM3156TR
Description	Low-Voltage SPDT Analog Switch
Detailed Description	1 Circuit IC Switch 2:1 15Ohm SOT-363
Datasheet	Datasheet

Category		Integrated Circuits (ICs) Interface Analog Switches, Multiplexers, Demultiplexers
Manufacturer		UNION SEMICONDUCTOR INTERNATIONAL LIMITED
Series		UM3156
Packaging		Tape & Reel (TR)
Part Status		Active

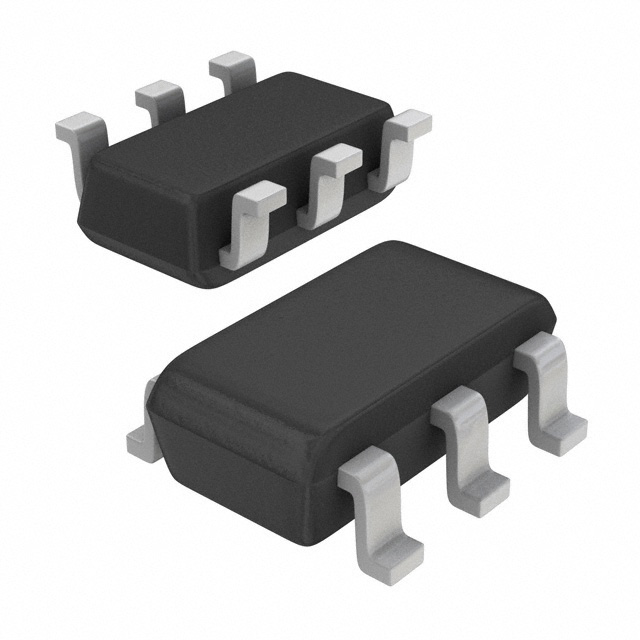

Package / Case		6-TSSOP, SC-88, SOT-363
Mounting Type		Surface Mount
Operating Temperature		-55°C ~ 125°C (TA)
On-State Resistance (Max)		15Ohm
-3db Bandwidth		230MHz
Supplier Device Package		SOT-363
Voltage - Supply, Single (V+)		1.65V ~ 5.5V
Charge Injection		9pC
Crosstalk		-54dB @ 10MHz
Switch Circuit		SPDT - NO/NC
Multiplexer/Demultiplexer Circuit		2:1
Channel-to-Channel Matching (ΔRon)		150mOhm
Switch Time (Ton, Toff) (Max)		6.2ns, 3.8ns
Channel Capacitance (CS(off), CD(off))		7.5pF
Current - Leakage (IS(off)) (Max)		100nA
Number of Circuits		1

RESOURCE TYPE		LINK
Datasheets		UM3156
