UM2268 _ Analog Switches, Multiplexers, Demultiplexers_Interface_Integrated Circuits (ICs)

Part Number	UM2268
Manufacturer	UNION SEMICONDUCTOR INTERNATIONAL LIMITED
Other Part Numbers	3351-UM2268TR-ND 3351-UM2268TR
Description	IC SWITCH SPDT X 2 750MOHM 10QFN
Detailed Description	2 Circuit IC Switch 2:1 750mOhm 10-QFN (1.8x1.4)

Category		Integrated Circuits (ICs) Interface Analog Switches, Multiplexers, Demultiplexers
Manufacturer		UNION SEMICONDUCTOR INTERNATIONAL LIMITED
Series
Packaging		Tape & Reel (TR)
Part Status		Active

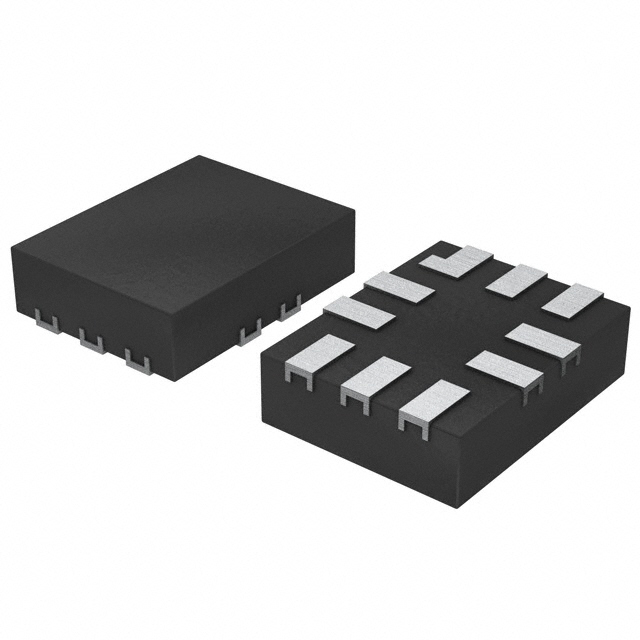

Package / Case		10-UFQFN
Mounting Type		Surface Mount
Operating Temperature		-40°C ~ 85°C
On-State Resistance (Max)		750mOhm
-3db Bandwidth		80MHz
Supplier Device Package		10-QFN (1.8x1.4)
Voltage - Supply, Single (V+)		1.8V ~ 4.4V
Charge Injection		4pC
Crosstalk		-90dB @ 1MHz
Switch Circuit		SPDT
Multiplexer/Demultiplexer Circuit		2:1
Channel-to-Channel Matching (ΔRon)		40mOhm
Switch Time (Ton, Toff) (Max)		88ns, 16ns
Current - Leakage (IS(off)) (Max)		1µA
Number of Circuits		2

RESOURCE TYPE		LINK

ATTRIBUTE		DESCRIPTION
ECCN		EAR99
HTSUS		8542.39.0001
Moisture Sensitivity Level (MSL)		3 (168 Hours)
REACH Status		REACH Unaffected
RoHS Status		ROHS3 Compliant
