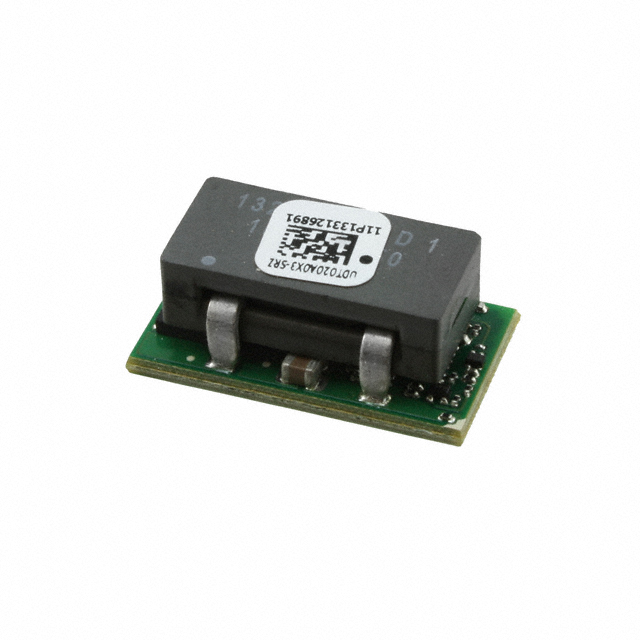

UDT020A0X3-SRDZ

UDT020A0X3-SRDZ

Part Number	UDT020A0X3-SRDZ
Manufacturer	OmniOn Power (formerly ABB Power Conversion)
Other Part Numbers	UDT020A0X3-SRDZ-ND CC109168745
Description	DC DC CONVERTER 0.45-5.5V
Detailed Description	Non-Isolated PoL Module, Digital DC DC Converter 1 Output 0.45 ~ 5.5V 20A 3V - 14.4V Input
Manufacturer Standard Lead Time	40 weeks

Product Attributes

Category		Power Supplies - Board Mount DC DC Converters
Manufacturer		OmniOn Power (formerly ABB Power Conversion)
Series		MicroDLynx™
Packaging		Tape & Reel (TR)
Part Status		Active
Features		Remote On/Off, OCP, OTP, UVLO
Package / Case		Module
Size / Dimension		0.80" L x 0.45" W x 0.33" H (20.3mm x 11.4mm x 8.5mm)
Mounting Type		Surface Mount
Type		Non-Isolated PoL Module, Digital
Operating Temperature		-40°C ~ 85°C
Applications		ITE (Commercial)
Voltage - Input (Max)		14.4V
Efficiency		95.2%
Current - Output (Max)		20A
Voltage - Input (Min)		3V
Voltage - Output 1		0.45 ~ 5.5V
Control Features		Enable, Active Low
Number of Outputs		1

Documents & Media

RESOURCE TYPE		LINK

Environmental & Export Classifications

ATTRIBUTE		DESCRIPTION
ECCN		EAR99
HTSUS		8504.40.9580
Moisture Sensitivity Level (MSL)		2A (4 Weeks)
RoHS Status		RoHS Compliant
