UC3770BN

Part Number
UC3770BN
Manufacturer Texas Instruments
Other Part Numbers
296-11260-5-ND
-296-11260-5-ND
-UC3770BNG4-NDR
-UC3770BN-NDR
296-11260-5
296-11260-5-NDR
-296-11260-5
UC3770BNG4-ND
2156-UC3770BN
UC3770BNG4
TEXUNIUC3770BN
-296-11260-5-NDR
-UC3770BNG4

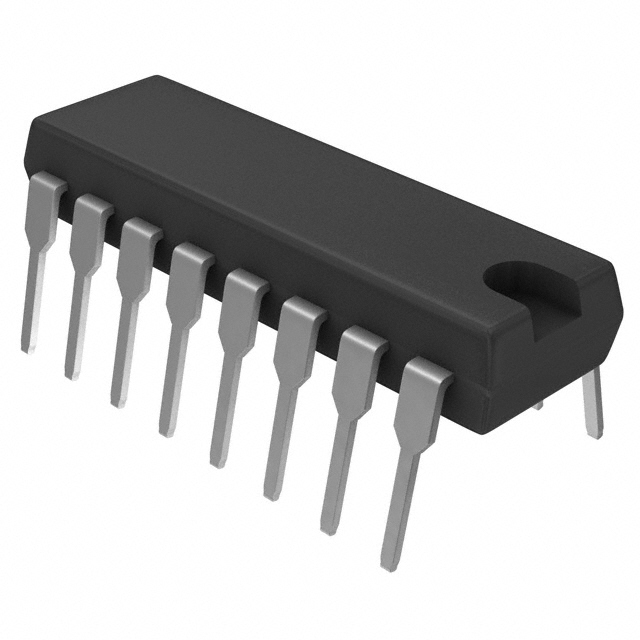

Description IC HALF BRIDGE DRIVER 2A 16DIP
Detailed Description Half Bridge (2) Driver General Purpose, Stepper Motors Bipolar 16-PDIP
Manufacturer Standard Lead Time 6 weeks
Datasheet Datasheet

Product Attributes

Category
Manufacturer Texas Instruments
Series
Packaging
Tube
Part Status Active
Package / Case 16-DIP (0.300", 7.62mm)
Mounting Type Through Hole
Interface Logic
Operating Temperature 0°C ~ 150°C (TJ)
Output Configuration Half Bridge (2)
Voltage - Supply 4.75V ~ 5.3V
Applications General Purpose, Stepper Motors
Current - Output / Channel 2A
Technology Bipolar
Voltage - Load 10V ~ 45V
Supplier Device Package 16-PDIP
Fault Protection Over Temperature
Load Type Inductive

Documents & Media

RESOURCE TYPE LINK
Datasheets UC3770BN
Datasheets Mult Dev 13/Apr/2023

Environmental & Export Classifications

ATTRIBUTE DESCRIPTION
ECCN EAR99
HTSUS 8542.39.0001
Moisture Sensitivity Level (MSL) Not Applicable
REACH Status REACH Unaffected
RoHS Status ROHS3 Compliant
