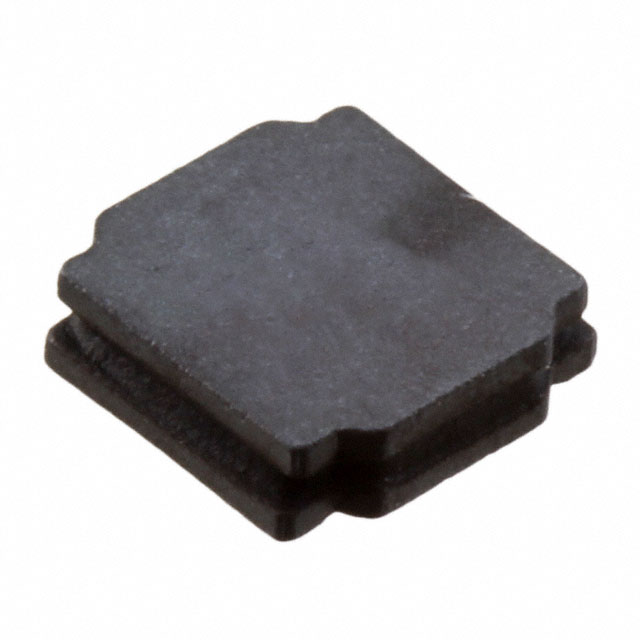

TYS4012100M-10

Part Number
TYS4012100M-10
Manufacturer Laird-Signal Integrity Products
Other Part Numbers
240-2656-2-ND
240-2656-1-ND
240-2656-6-ND
240-2656-2
240-2656-1
240-2656-6
Description FIXED IND 10UH 770MA 265MOHM SMD
Detailed Description 10 µH Shielded Inductor 770 mA 265mOhm Max Nonstandard
Manufacturer Standard Lead Time 14 weeks

Product Attributes

Category
Manufacturer Laird-Signal Integrity Products
Series
TYS4012
Packaging
Tape & Reel (TR)
Cut Tape (CT)
Part Status Active
Tolerance ±20%
Package / Case Nonstandard
Size / Dimension 0.157" L x 0.157" W (4.00mm x 4.00mm)
Mounting Type Surface Mount
Shielding Shielded
Operating Temperature -40°C ~ 125°C
DC Resistance (DCR) 265mOhm Max
Frequency - Self Resonant 33MHz
Current - Saturation (Isat) 800mA
Inductance Frequency - Test 100 kHz
Height - Seated (Max) 0.047" (1.20mm)
Inductance 10 µH
Current Rating (Amps) 770 mA

Documents & Media

RESOURCE TYPE LINK

Environmental & Export Classifications

ATTRIBUTE DESCRIPTION
ECCN EAR99
HTSUS 8504.50.4000
Moisture Sensitivity Level (MSL) 1 (Unlimited)
REACH Status REACH Unaffected
RoHS Status ROHS3 Compliant
