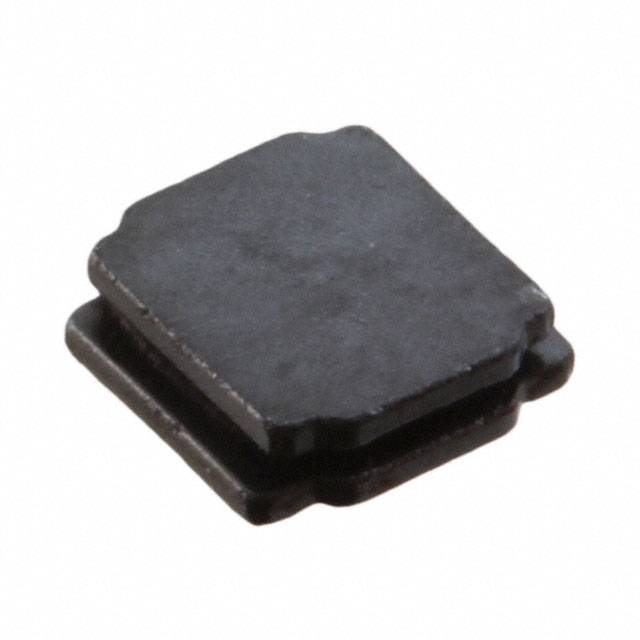

TYS30102R2N-10

TYS30102R2N-10

Part Number	TYS30102R2N-10
Manufacturer	Laird-Signal Integrity Products
Other Part Numbers	240-2631-2-ND 240-2631-1-ND 240-2631-6-ND 240-2631-2 240-2631-1 240-2631-6
Description	FIXED IND 2.2UH 1.09A 110MOHM SM
Detailed Description	2.2 µH Shielded Inductor 1.09 A 110mOhm Max Nonstandard
Manufacturer Standard Lead Time	14 weeks

Product Attributes

Category		Inductors, Coils, Chokes Fixed Inductors
Manufacturer		Laird-Signal Integrity Products
Series		TYS3010
Packaging		Tape & Reel (TR) Cut Tape (CT)
Part Status		Active
Tolerance		±30%
Package / Case		Nonstandard
Size / Dimension		0.118" L x 0.118" W (3.00mm x 3.00mm)
Mounting Type		Surface Mount
Shielding		Shielded
Operating Temperature		-40°C ~ 125°C
DC Resistance (DCR)		110mOhm Max
Frequency - Self Resonant		100MHz
Current - Saturation (Isat)		1.15A
Inductance Frequency - Test		100 kHz
Height - Seated (Max)		0.039" (1.00mm)
Inductance		2.2 µH
Current Rating (Amps)		1.09 A

Documents & Media

RESOURCE TYPE		LINK

Environmental & Export Classifications

ATTRIBUTE		DESCRIPTION
ECCN		EAR99
HTSUS		8504.50.4000
Moisture Sensitivity Level (MSL)		1 (Unlimited)
REACH Status		REACH Unaffected
RoHS Status		ROHS3 Compliant
