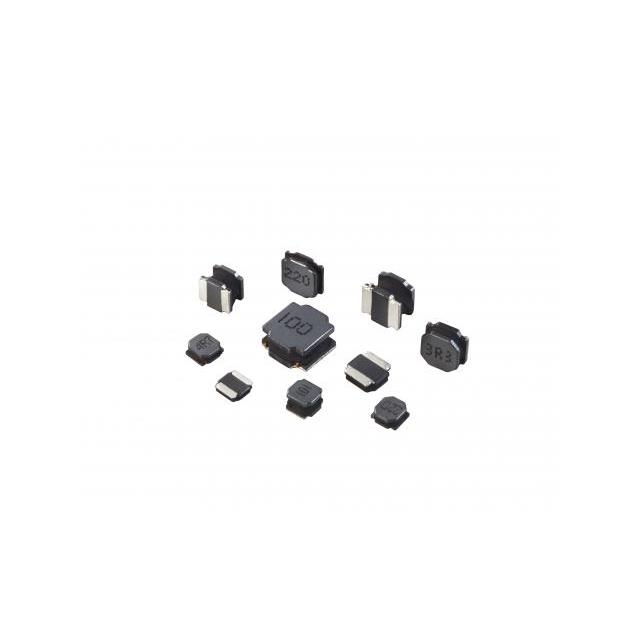

TYS30101R5N-10 _ Fixed Inductors_Inductors, Coils, Chokes

Part Number	TYS30101R5N-10
Manufacturer	Laird-Signal Integrity Products
Other Part Numbers	TYS30101R5N-10-ND
Description	FIXED IND 1.5UH 1.3A 80 MOHM SMD
Detailed Description	1.5 µH Shielded Wirewound Inductor 1.3 A 80mOhm Nonstandard
Manufacturer Standard Lead Time	14 weeks

Category		Inductors, Coils, Chokes Fixed Inductors
Manufacturer		Laird-Signal Integrity Products
Series		TYS3010
Packaging		Tape & Reel (TR)
Part Status		Active
Tolerance		±30%
Package / Case		Nonstandard
Size / Dimension		0.118" L x 0.118" W (3.00mm x 3.00mm)
Mounting Type		Surface Mount
Shielding		Shielded
Type		Wirewound
Operating Temperature		-40°C ~ 125°C
DC Resistance (DCR)		80mOhm
Frequency - Self Resonant		120MHz
Ratings		AEC-Q200
Current - Saturation (Isat)		1.27A
Inductance Frequency - Test		100 kHz
Height - Seated (Max)		0.039" (1.00mm)
Inductance		1.5 µH
Current Rating (Amps)		1.3 A

RESOURCE TYPE		LINK
Datasheets		TYS30101R5N-10
Datasheets		TYS Low Profile SMD Pwr Inductors
Datasheets		TYS30101R5N-10 Drawing

ATTRIBUTE		DESCRIPTION
ECCN		EAR99
HTSUS		8504.50.4000
Moisture Sensitivity Level (MSL)		1 (Unlimited)
REACH Status		REACH Unaffected
RoHS Status		ROHS3 Compliant
