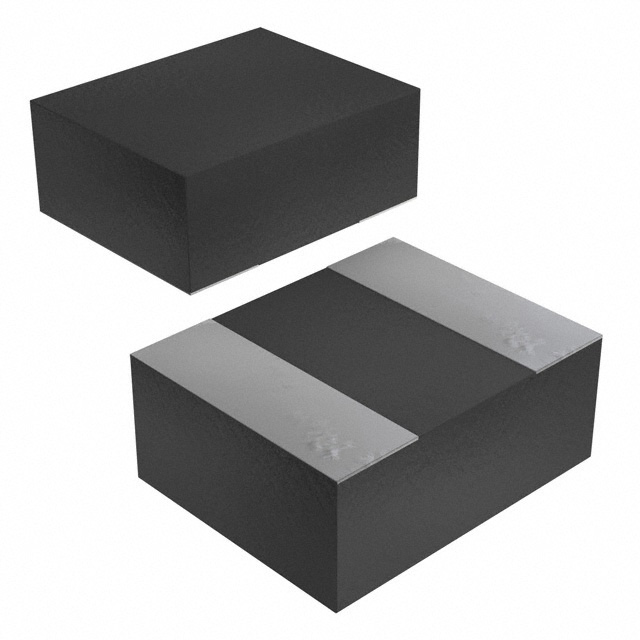

TYS252012L150M-10

Part Number
TYS252012L150M-10
Manufacturer Laird-Signal Integrity Products
Other Part Numbers
240-2619-2-ND
240-2619-1-ND
240-2619-6-ND
240-2619-2
240-2619-6
240-2619-1
Description FIXED IND 15UH 420MA 1.469OHM SM
Detailed Description 15 µH Shielded Inductor 420 mA 1.469Ohm Max 1008 (2520 Metric)
Manufacturer Standard Lead Time 14 weeks

Product Attributes

Category
Manufacturer Laird-Signal Integrity Products
Series
TYS252012L
Packaging
Tape & Reel (TR)
Cut Tape (CT)
Part Status Active
Tolerance ±20%
Package / Case 1008 (2520 Metric)
Size / Dimension 0.098" L x 0.079" W (2.50mm x 2.00mm)
Mounting Type Surface Mount
Shielding Shielded
Operating Temperature -40°C ~ 125°C
DC Resistance (DCR) 1.469Ohm Max
Frequency - Self Resonant 25MHz
Current - Saturation (Isat) 680mA
Inductance Frequency - Test 100 kHz
Supplier Device Package 1008 (2520 Metric)
Height - Seated (Max) 0.039" (1.00mm)
Inductance 15 µH
Current Rating (Amps) 420 mA

Documents & Media

RESOURCE TYPE LINK

Environmental & Export Classifications

ATTRIBUTE DESCRIPTION
ECCN EAR99
HTSUS 8504.50.4000
Moisture Sensitivity Level (MSL) 1 (Unlimited)
REACH Status REACH Unaffected
RoHS Status ROHS3 Compliant
