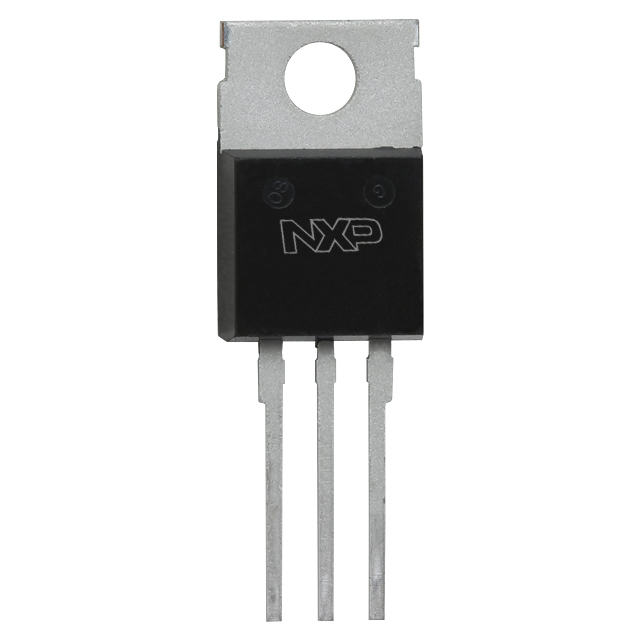

TYN16-600CTFQ

TYN16-600CTFQ

Part Number	TYN16-600CTFQ
Manufacturer	WeEn Semiconductors Co., Ltd
Other Part Numbers	1740-TYN16-600CTFQ-ND 1740-TYN16-600CTFQ 934072867127
Description	PLANAR PASSIVATED SILICON CONTRO
Detailed Description	SCR 600 V 16 A Standard Recovery Through Hole TO-220AB
Manufacturer Standard Lead Time	8 weeks
Datasheet	Datasheet

Product Attributes

Category		Discrete Semiconductor Products Thyristors SCRs
Manufacturer		WeEn Semiconductors Co., Ltd
Series
Packaging		Tube
Part Status		Active
Package / Case		TO-220-3
Mounting Type		Through Hole
SCR Type		Standard Recovery
Operating Temperature		150°C (TJ)
Current - Hold (Ih) (Max)		40 mA
Current - Gate Trigger (Igt) (Max)		10 mA
Current - Non Rep. Surge 50, 60Hz (Itsm)		188A, 207A
Current - On State (It (AV)) (Max)		10.2 A
Voltage - Gate Trigger (Vgt) (Max)		1 V
Voltage - On State (Vtm) (Max)		1.6 V
Current - Off State (Max)		10 µA
Supplier Device Package		TO-220AB
Current - On State (It (RMS)) (Max)		16 A
Voltage - Off State		600 V

Documents & Media

RESOURCE TYPE		LINK
Datasheets		TYN16-600CTFQ

Environmental & Export Classifications

ATTRIBUTE		DESCRIPTION
ECCN		EAR99
HTSUS		8541.30.0080
Moisture Sensitivity Level (MSL)		1 (Unlimited)
RoHS Status		ROHS3 Compliant

In Stock: 5794

Can ship immediately.
