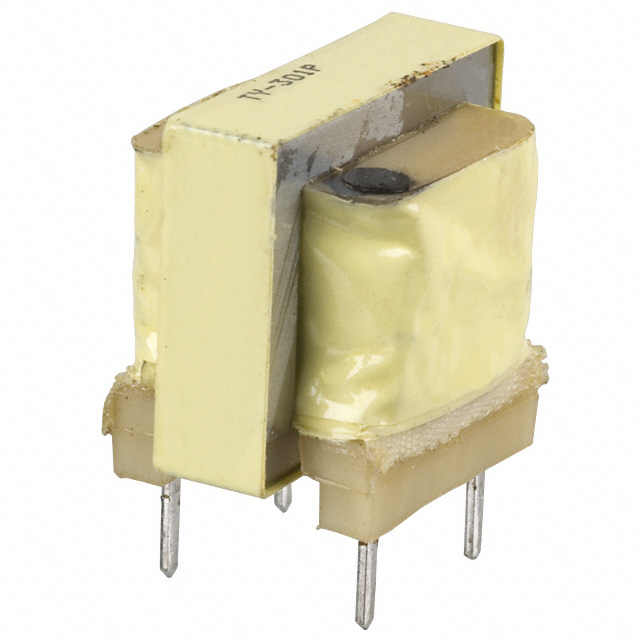

TY-301P _ Audio Transformers_Transformers

Part Number	TY-301P
Manufacturer	Triad Magnetics
Other Part Numbers	237-1124-ND 237-1124
Description	AUDIO XFMR 600 / 900 TH
Detailed Description	600 Impedance Primary Ohms 900 Impedance Secondary Ohms 1:1.27 Audio Transformer 300Hz ~ 3.5kHz Through Hole
Manufacturer Standard Lead Time	23 weeks
Datasheet	Datasheet

Category		Transformers Audio Transformers
Manufacturer		Triad Magnetics
Series		TY
Packaging		Bulk
Part Status		Active
Size / Dimension		0.812" L x 0.700" W (20.62mm x 17.78mm)
Mounting Type		Through Hole
Operating Temperature		-20°C ~ 85°C
Termination Style		PC Pin
Transformer Type		Data/Voice Coupling
Turns Ratio - Primary:Secondary		1:1.27
Insertion Loss		1dB Typ
Frequency Range		300Hz ~ 3.5kHz
Voltage - Isolation		1500VAC
Return Loss		26dB Typ
Height - Seated (Max)		0.740" (18.80mm)
Impedance - Primary (Ohms)		600
Impedance - Secondary (Ohms)		900
DC Resistance (DCR) - Primary		36Ohm
DC Resistance (DCR) - Secondary		76Ohm
Frequency Response		±0.5dB
Power Level		-45dB ~ 7dB

ATTRIBUTE		DESCRIPTION
ECCN		EAR99
HTSUS		8504.31.4035
Moisture Sensitivity Level (MSL)		Not Applicable
REACH Status		REACH Unaffected
RoHS Status		ROHS3 Compliant
