Part Number	TX24-120R-6ST-H1E
Manufacturer	JAE Electronics
Other Part Numbers	670-1368-ND 670-1368

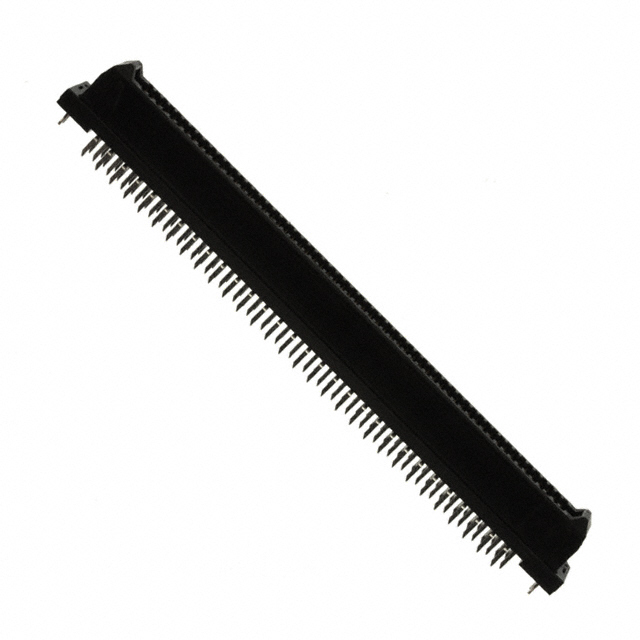

Description	CONN RCPT 120POS VERT GOLD
Detailed Description	120 Position Connector Receptacle, Outer Shroud Contacts Through Hole Gold
Manufacturer Standard Lead Time	15 weeks
Datasheet	Datasheet

Product Attributes

Category		Connectors, Interconnects Rectangular Connectors Arrays, Edge Type, Mezzanine (Board to Board)
Manufacturer		JAE Electronics
Series		TX24
Packaging		Tray
Part Status		Active
Features		Board Lock
Connector Type		Receptacle, Outer Shroud Contacts
Contact Finish		Gold
Mounting Type		Through Hole
Number of Positions		120
Pitch		0.050" (1.27mm)
Height Above Board		0.406" (10.30mm)
Contact Finish Thickness		4.00µin (0.100µm)
Mated Stacking Heights		12mm, 14mm, 18mm
Number of Rows		2

Documents & Media

RESOURCE TYPE		LINK
Datasheets		TX24-120R-6ST-H1E
Datasheets		Mult Dev RETRACTION 28/Apr/2015
Datasheets		TX24-yyR-yST-H1E Drawing
Datasheets		TX24 Series Straight

Environmental & Export Classifications

ATTRIBUTE		DESCRIPTION
California Prop 65		California Prop 65 Information
ECCN		EAR99
HTSUS		8536.69.4040
Moisture Sensitivity Level (MSL)		1 (Unlimited)
RoHS Status		RoHS Compliant
