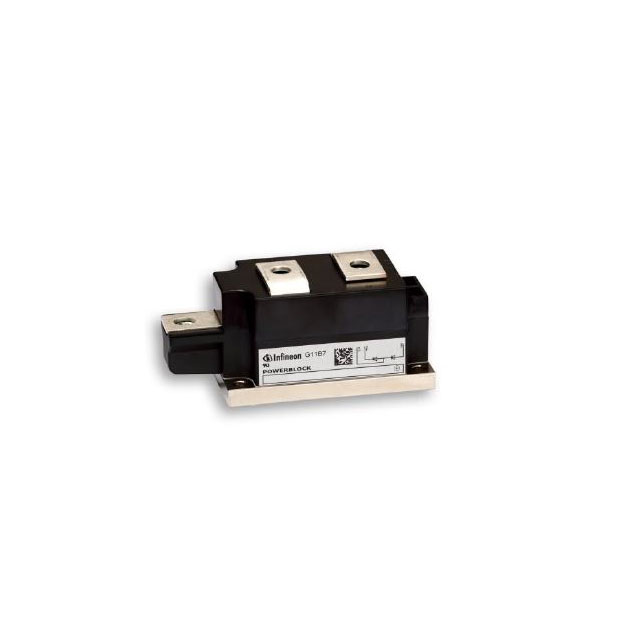

TT340N22KOFXPSA1

Part Number
TT340N22KOFXPSA1
Manufacturer IR (Infineon Technologies)
Other Part Numbers
448-TT340N22KOFXPSA1-ND
448-TT340N22KOFXPSA1
Description PHASE CONTROL THYRISTOR MODULE
Detailed Description SCR Module 2.2 kV 520 A Series Connection - All SCRs Chassis Mount Module
Manufacturer Standard Lead Time 16 weeks

Product Attributes

Category
Manufacturer IR (Infineon Technologies)
Series
TT
Packaging
Bulk
Part Status Active
Package / Case Module
Mounting Type Chassis Mount
Operating Temperature 135°C (TJ)
Structure Series Connection - All SCRs
Current - Hold (Ih) (Max) 300 mA
Current - Gate Trigger (Igt) (Max) 200 mA
Current - Non Rep. Surge 50, 60Hz (Itsm) 9500A @ 50Hz
Number of SCRs, Diodes 2 SCRs
Current - On State (It (AV)) (Max) 338 A
Voltage - Gate Trigger (Vgt) (Max) 2 V
Current - On State (It (RMS)) (Max) 520 A
Voltage - Off State 2.2 kV

Documents & Media

RESOURCE TYPE LINK

Environmental & Export Classifications

ATTRIBUTE DESCRIPTION
ECCN EAR99
HTSUS 8541.30.0080
Moisture Sensitivity Level (MSL) Not Applicable
REACH Status REACH Unaffected
RoHS Status ROHS3 Compliant

In Stock: 6

Can ship immediately.
