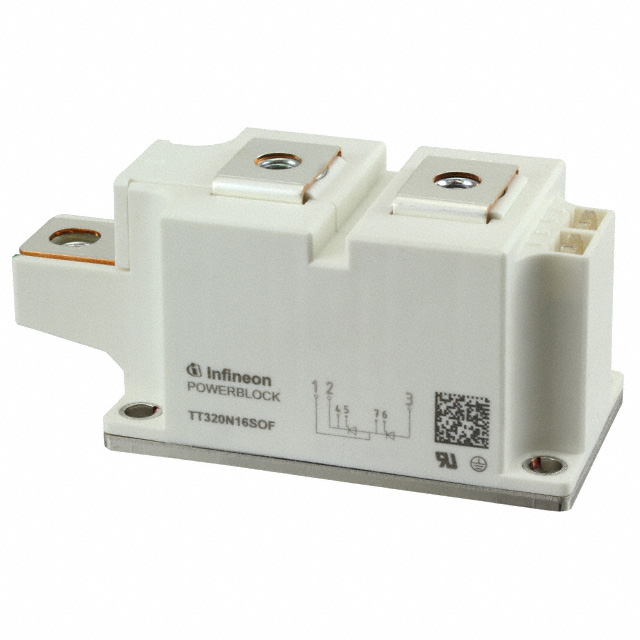

TT320N16SOFHPSA1

Part Number
TT320N16SOFHPSA1
Manufacturer IR (Infineon Technologies)
Other Part Numbers
448-TT320N16SOFHPSA1-ND
TT320N16SOF-ND
448-TT320N16SOFHPSA1
SP001328720
TT320N16SOFHPSA1-ND
TT320N16SOF
Description THYRISTOR MODULE 1600V 320A
Detailed Description SCR Module 1.6 kV 520 A Series Connection - All SCRs Chassis Mount Module
Manufacturer Standard Lead Time 16 weeks
Datasheet Datasheet

Product Attributes

Category
Manufacturer IR (Infineon Technologies)
Series
Packaging
Bulk
Part Status Active
Package / Case Module
Mounting Type Chassis Mount
Operating Temperature 130°C (TJ)
Structure Series Connection - All SCRs
Current - Hold (Ih) (Max) 150 mA
Current - Gate Trigger (Igt) (Max) 150 mA
Number of SCRs, Diodes 2 SCRs
Current - On State (It (AV)) (Max) 320 A
Voltage - Gate Trigger (Vgt) (Max) 2 V
Current - On State (It (RMS)) (Max) 520 A
Voltage - Off State 1.6 kV

Documents & Media

Environmental & Export Classifications

ATTRIBUTE DESCRIPTION
ECCN EAR99
HTSUS 8541.30.0080
Moisture Sensitivity Level (MSL) 1 (Unlimited)
REACH Status REACH Unaffected
RoHS Status ROHS3 Compliant

In Stock: 3

Can ship immediately.
PACKAGING QUANTITY UNIT PRICE EXT PRICE
{{ p.name }} {{ numberFormat(p.buyQty) }} {{ priceFormat(p.unitPrice) }} {{ priceFormat(p.totalPrice) }}
Total Amount: {{ priceFormat(quotes.total) }} (including {{ priceFormat(quotes.fee) }} fee)

{{ package.name }}

QUANTITY UNIT PRICE EXT PRICE
{{ numberFormat(price.break_quantity) }} {{ priceFormat(price.unit_price) }} {{ priceFormat(price.break_quantity * price.unit_price) }}
Detailed pricing is currently unavailable.
Detailed packaging information is temporarily unavailable.
