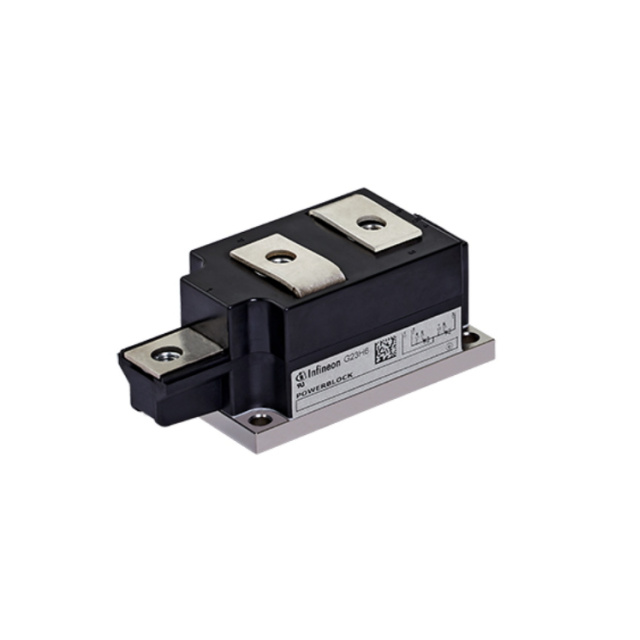

TT285N16KOFHPSA2

Part Number
TT285N16KOFHPSA2
Manufacturer IR (Infineon Technologies)
Other Part Numbers
448-TT285N16KOFHPSA2-ND
SP001271540
TT285N16KOFHPSA2-ND
448-TT285N16KOFHPSA2
TT285N16KOF
TT285N16KOF-ND
Description SCR MODULE 1.6KV 520A MODULE
Detailed Description SCR Module 1.6 kV 520 A Series Connection - All SCRs Chassis Mount Module
Manufacturer Standard Lead Time 16 weeks
Datasheet Datasheet

Product Attributes

Category
Manufacturer IR (Infineon Technologies)
Series
Packaging
Tray
Part Status Active
Package / Case Module
Mounting Type Chassis Mount
Operating Temperature -40°C ~ 130°C
Structure Series Connection - All SCRs
Current - Hold (Ih) (Max) 300 mA
Current - Gate Trigger (Igt) (Max) 200 mA
Current - Non Rep. Surge 50, 60Hz (Itsm) 12500A @ 50Hz
Number of SCRs, Diodes 2 SCRs
Current - On State (It (AV)) (Max) 285 A
Voltage - Gate Trigger (Vgt) (Max) 2 V
Current - On State (It (RMS)) (Max) 520 A
Voltage - Off State 1.6 kV

Environmental & Export Classifications

ATTRIBUTE DESCRIPTION
ECCN EAR99
HTSUS 8541.30.0080
Moisture Sensitivity Level (MSL) Not Applicable
REACH Status REACH Unaffected
RoHS Status ROHS3 Compliant

Available To Order
