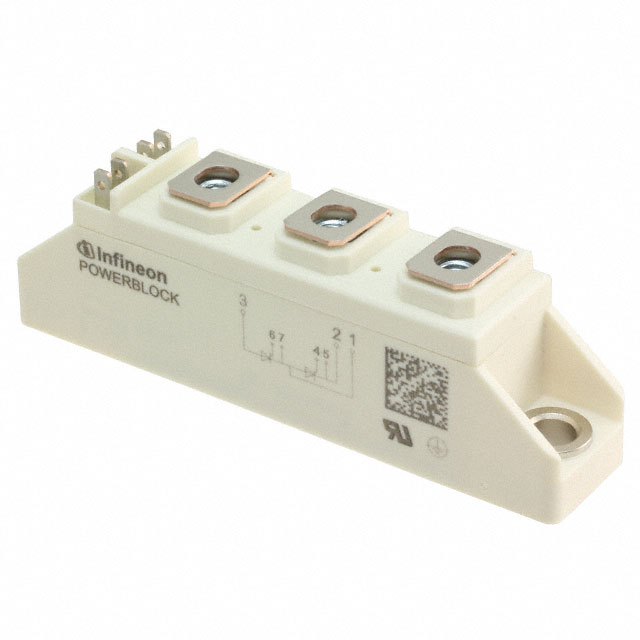

TT120N16SOFHPSA1

Part Number
TT120N16SOFHPSA1
Manufacturer IR (Infineon Technologies)
Other Part Numbers
TT120N16SOFHPSA1-ND
2156-TT120N16SOFHPSA1
SP001272798
TT120N16SOF-ND
INFINFTT120N16SOFHPSA1
TT120N16SOF
Description SCR MODULE 1.6V 190A MODULE
Detailed Description SCR Module 1.6 kV 190 A Series Connection - All SCRs Chassis Mount Module
Manufacturer Standard Lead Time 30 weeks
Datasheet Datasheet

Product Attributes

Category
Manufacturer IR (Infineon Technologies)
Series
Packaging
Bulk
Part Status Active
Package / Case Module
Mounting Type Chassis Mount
Operating Temperature -40°C ~ 130°C
Structure Series Connection - All SCRs
Current - Hold (Ih) (Max) 250 mA
Current - Gate Trigger (Igt) (Max) 100 mA
Number of SCRs, Diodes 2 SCRs
Current - On State (It (AV)) (Max) 119 A
Voltage - Gate Trigger (Vgt) (Max) 2.5 V
Current - On State (It (RMS)) (Max) 190 A
Voltage - Off State 1.6 kV

Documents & Media

RESOURCE TYPE LINK
Datasheets TT120N16SOFHPSA1
Datasheets Part Number Guide

Environmental & Export Classifications

ATTRIBUTE DESCRIPTION
ECCN EAR99
HTSUS 8541.30.0080
Moisture Sensitivity Level (MSL) 1 (Unlimited)
REACH Status REACH Unaffected
RoHS Status ROHS3 Compliant

In Stock: 1

Can ship immediately.
