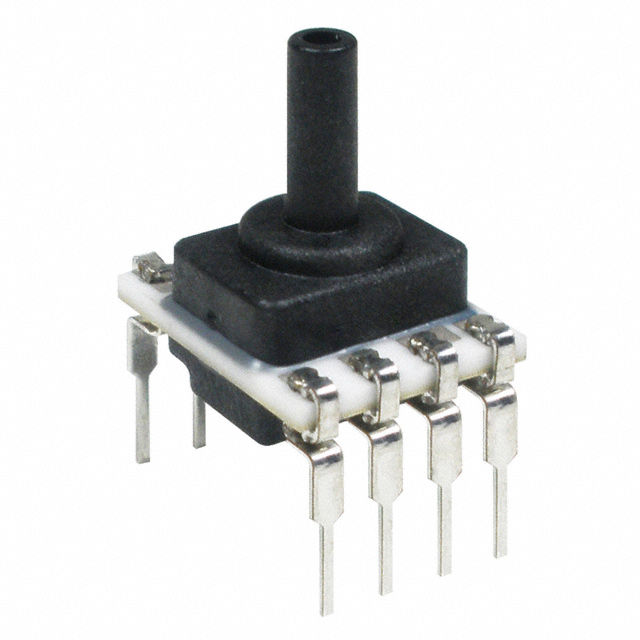

TSCDLNN015PGUCV _ Pressure Sensors, Transducers_Sensors, Transducers

Part Number	TSCDLNN015PGUCV
Manufacturer	Honeywell Sensing and Productivity Solutions
Other Part Numbers	TSCDLNN015PGUCV-ND
Description	SENSOR 15PSIG 0.1" .02625V 8DIP
Detailed Description	Pressure Sensor 15PSI (103.42kPa) Vented Gauge Male - 0.1" (2.47mm) Tube 0 mV ~ 26.25 mV (5V) 8-DIP (0.524", 13.30mm), Top Port

Category		Sensors, Transducers Pressure Sensors, Transducers
Manufacturer		Honeywell Sensing and Productivity Solutions
Series		TruStability® TSC
Packaging		Bulk
Part Status		Active
Features		Temperature Compensated
Package / Case		8-DIP (0.524", 13.30mm), Top Port
Output Type		Wheatstone Bridge
Mounting Type		Through Hole
Output		0 mV ~ 26.25 mV (5V)
Operating Pressure		15PSI (103.42kPa)
Pressure Type		Vented Gauge
Accuracy		±0.15%
Operating Temperature		-40°C ~ 85°C
Termination Style		PC Pin
Voltage - Supply		1.5V ~ 12V
Port Size		Male - 0.1" (2.47mm) Tube
Applications		Board Mount
Supplier Device Package		8-DIP
Port Style		Barbless
Maximum Pressure		60PSI (413.69kPa)

ATTRIBUTE		DESCRIPTION
ECCN		EAR99
HTSUS		9026.20.4000
Moisture Sensitivity Level (MSL)		1 (Unlimited)
RoHS Status		RoHS Compliant
